Barco UniSee

Barco UniSee takes a completely new approach to truly seamless LCD video walls.

55" bezel-less tiled LCD video wall platform

  • Bezel-less design with NoGap technology
  • Mounting structure with automatic alignment
  • Sense X real-time and continuous calibration
  • Fastest servicing and diagnosing
  • Modular, future-proof platform

Barco UniSee takes a completely new approach to truly seamless LCD video walls. Redesigning and optimizing every component, Barco UniSee is not only a step forward in terms of image quality, but also in installation time, ease-of-servicing, and reliability.

Bezel-less viewing experience, innovative mounting system

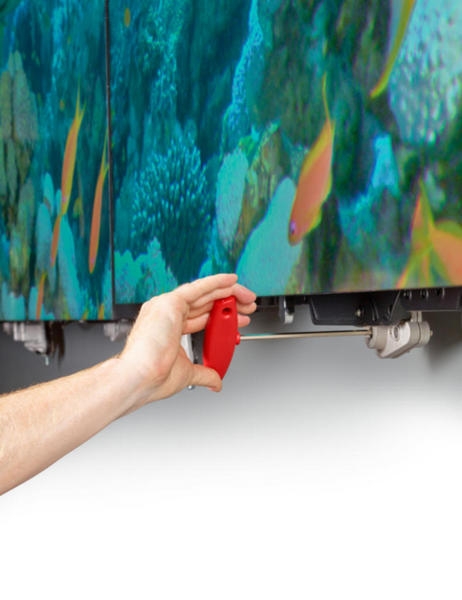

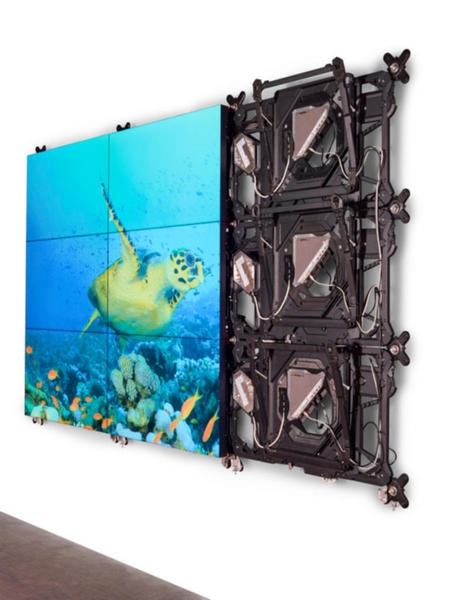

NoGap technology, which makes the inter-tile gap barely noticeable, finally makes it possible to spread content over multiple tiles without the interruption of a disturbing bezel. In order to guarantee the smallest possible gap without damaging the panels' edges, Barco has created the UniSee Mount. This revolutionary mounting structure uses the power of gravity to perfectly and automatically align panels – and keep them in place over time. What's more, UniSee Mount also eases setup and maintenance efforts, allowing swift undocking of separate panels.

Automatic real-time calibration for perfect uniformity

Sense X, the automatic, continuous and real-time color and brightness calibration system, ensures that the complete wall gives a perfectly balanced image at all times. What’s more, Barco has also re-engineered the design of the panels to counter all possible variations in brightness from the center to the edges.

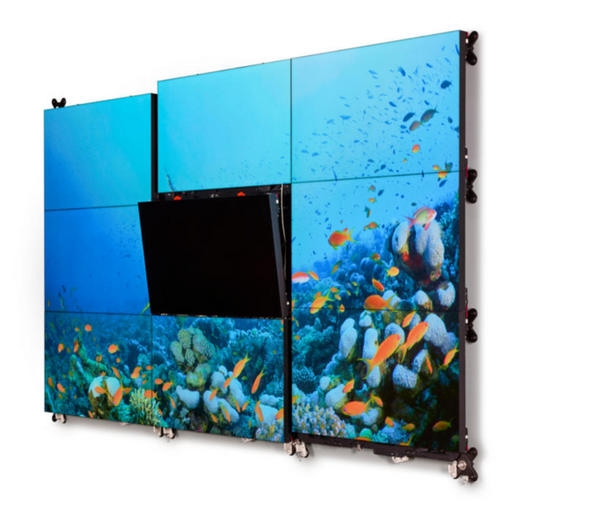

Easy diagnosing and servicing

Because a video wall is often part of a critical application, Barco took all possible measures to ensure optimal uptime. The platform is built in such a way that it can easily be diagnosed and serviced. The software platform (UniSee Connect) that manages the entire video wall automatically assigns and calibrates the panels, and acts as the single point of connection for remote diagnostics and control.


 Aspect ratio 16:91920x1080 resolutionexceptional energy-efficient and/or ergonomicvery low noise for its classlow total cost of ownershipEasy service24-7 operationAutomatic brightness and color calibrationeasy installationmodular system architectureScalable and seamless canvasBezel-less LCD technology


Video wall configurator

Let's help you design your video wall: LCD or rear-projection...


Specifikációk

LCD technológiaPVA
Screen haze 44%
FelbontásFull HD (1920 x 1080)
Backlight Direct LED
Képarány16:9
Fényerő800 cd/m2 (TYPICAL)
Kontraszt4000:1 (TYPICAL)
White point 10,500 K (TYPICAL)
Kalibráció Sense X automatic color and brightness calibration
Backlight lifetime 100,000 h (TYPICAL)
Hűtés Fanless
Üzemi hőmérséklet10°C - 40°C
Operational humidity Min. 20% | Max. 70% for T < =30°C or 115%-(1.5% x T/°C) for T=30°C to 40°C (non-condensing)
Tárolási hőmérséklet-20°C - 60°C
Storage humidity 10 - 90% non-condensing
Response time < 8.5 ms
Uniformity 9 points: 98% | 13 points: 97.7% | 21 points: 95.3%
Dimensions 1213.5 x 683 x 102.4 mm | 47.8" x 26.9" x 4.03" (internal SMPS)
1213.5 x 683 x 94.9 mm | 47.8" x 26.9" x 3.74" (external SMPS)
Active screen diagonal 55"
Active screen area 1212.5 x 682 mm | 47.7" x 26.8"
Súly15 kg | 33.1 lbs (LCM net) / 17.4 kg | 38.4 lbs (LCD net)
Bezel Width NA (bezel-less)
DisplayPort 2 inputs
HDMI 2 inputs / 1 output
USB 2 (only for power)
Ethernet port 2
HDCP Yes
Power consumption
 Int. power supplyExt. power supply
800 nit190 W175 W
700 nit170 W157 W
350 nit100 W92 W
Heat dissipation
800 nit650 BTU/h600 BTU/h
700 nit580 BTU/h536 BTU/h
350 nit342 BTU/h314 BTU/h
EMC Class A
