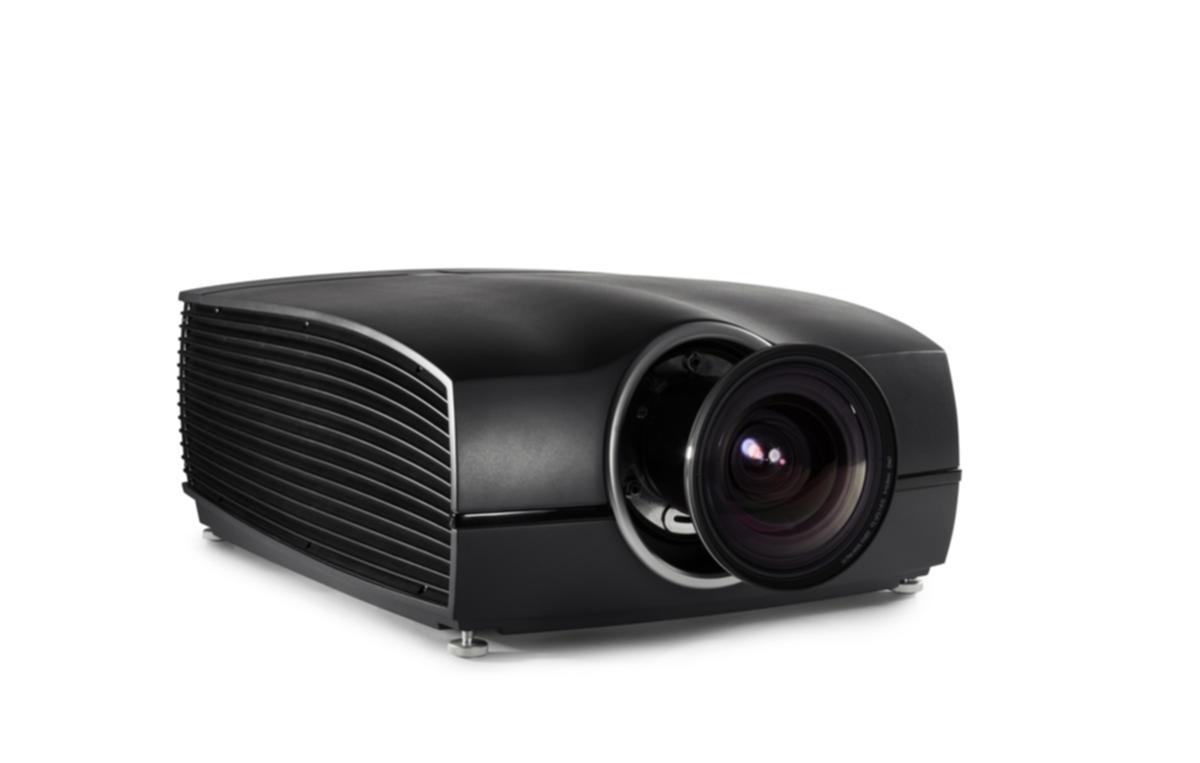

F90-4K13

The reliable F90 4K13 is equally suited for events, retail and advertising as well as boardrooms and auditoriums.

11,800 lumens, 4K UHD, DLP laser phosphor projector

  • Razor-sharp 4K images
  • Ultimate installation flexibility, 24/7 operation
  • Increased uptime, reduced costs

The stunning image quality and laser phosphor light source of Barco's F90 projectors enable you to provide exceptional experiences while saving both time and money. Designed for installation in everything from high demanding visitor attractions to simulation applications that require 24/7 operation, the reliable F90 4K13 is equally suited for events, retail and advertising as well as boardrooms and auditoriums. Thanks to its 3D functionality, the projector is also perfectly fit for theme park dark rides and interactive experiences.

Superior image quality

The F90-4K13 delivers razor-sharp images at 4K UHD resolution with a high level of detail, and highly saturated colors that meet the Rec. 709 color space. Featuring an advanced optical design, this reliable projector provides a constant light output, for long-term, worry-free operation.

Unprecedented business value

The F90-4K13 projector enables you to increase uptime while driving costs down. Through its laser-phosphor light source and advanced cooling design, it provides up to 40,000 hours operating time without need for lamp changes - resulting in considerable cost-savings on maintenance and consumables.

Ultimate installation flexibility

This projector can run in any orientation, giving you more flexibility in projector location and orientation. Thanks to its wide array of high-resolution FLD and FLD+ lenses – from ultra-short throw (0.3:1) to long throw (9.75:1) – each providing a wide lens shift range, the F90-4K13 accommodates almost any projector configuration.


the light output of a projector or light, measured in lumens 4K UHD resolution Laser phosphor projection HDBaseT compliant 24-7 operation


Specifikációk

Projector type Single chip DLP laser phosphor projector
Resolution 3,840 x 2,400 (4K UHD) / 2,560 x 1,600 (WQXGA native)
Brightness 11,800 center lumens
Contrast ratio 1,800:1 sequential, 10,000:1 dynamic*
Brightness uniformity 90%
Aspect ratio 16:10
Lens type FLD+
Optical lens shift Up to 146% lens shift, depending on lens. Motorized zoom, focus, vertical and horizontal shift, iris and shutter.
Color correction P7 RealColor™
CLO (constant light output) Yes*
Light source Laser phosphor
Light source lifetime Up to 60,000 hours**
Sealed DLP™ core Yes
Orientation 360° rotation, no restrictions
3D Active stereoscopic 3D*
Image processing Embedded warp & blend engine
Keystone correction Yes
Inputs HDSDI, 2x DP 1.2, 2x dual link DVI-D, HDBaseT, HDMI 2.0*, RJ 45 Ethernet, DMX in/out*, RS232 in, 2x USB, 12v out
Input resolutions Up to 4K UHD @ 60Hz / Up to 2,560 x 1,600 @ 120Hz
Software tools Projector Toolset
Control IR, RS232, RJ45, XLR wired
Network connection 10/100 Ethernet, RJ45
Power requirements 100-240V / 50-60Hz
Power consumption 1,200W nominal, 1,600 W maximum
BTU per hour 4,100 BTU/h nominal, 5,500 BTU/h maximum
Standby power <0.5W
Noise level (typical at 25°C/77°F) 38 dB(A)
Operating temperature 10 - 45 °C (sea level)
Storage temperature -20 to 60 °C
Operating humidity 20 - 80% RH
Storage humidity 10 - 90% RH
Dimensions (WxLxH) 575 x 730 x 295 mm / 22.64 x 28.74 x 11.61 in
Weight 44.5 kg / 98.1 lbs
Standard accessories Power cord, wireless remote control
Certifications CE, FCC Class A, cNemkoUS, CCC, EAC, KSA, KCC, RCM, UkrSEPRO
Warranty Limited 3 years parts and labor. Extendable up to 5 years
24-7 documentation This projector is designed and warranted for heavy duty 24/7 operation. Specific measures and design considerations have been made in order for it to comply with stringent requirements in challenging applications.
Notes * SW upgradable. Please contact an authorized Barco representative for details. ** When used in long-life mode, available through SW upgrade
