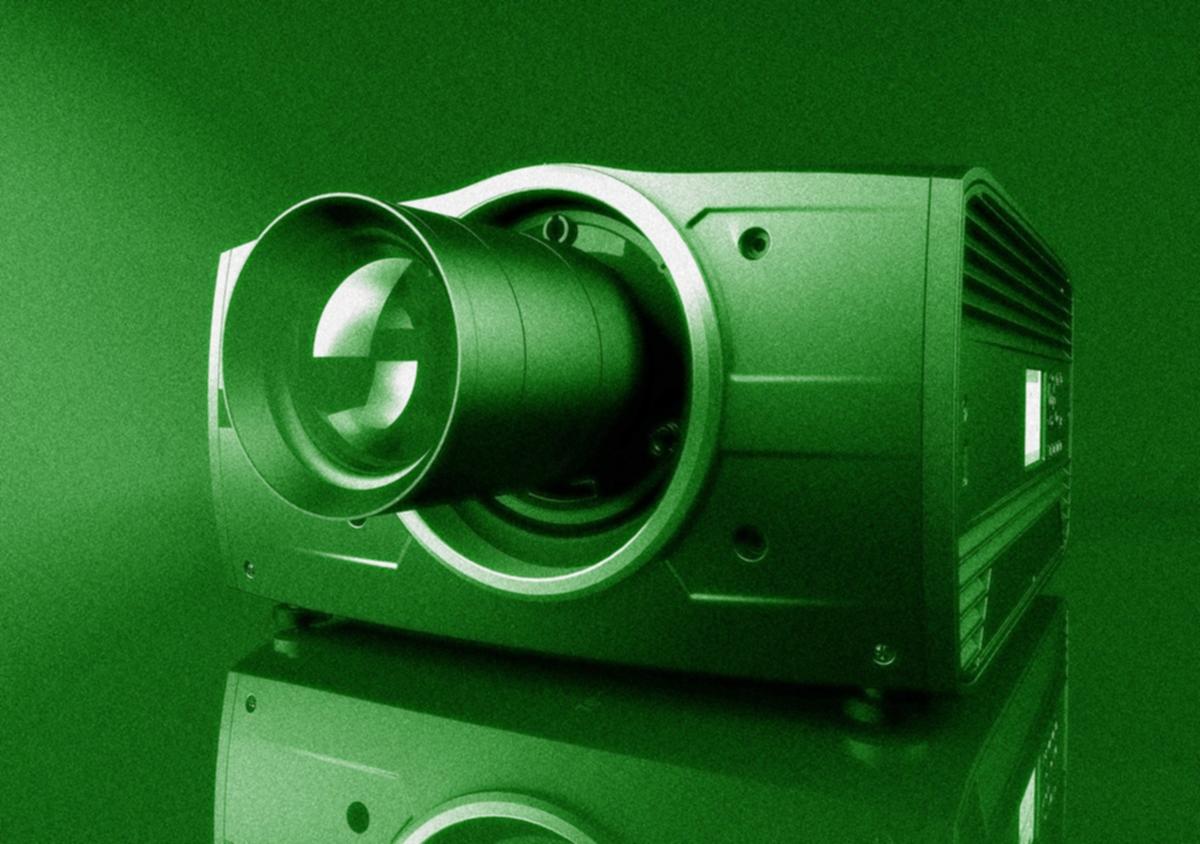

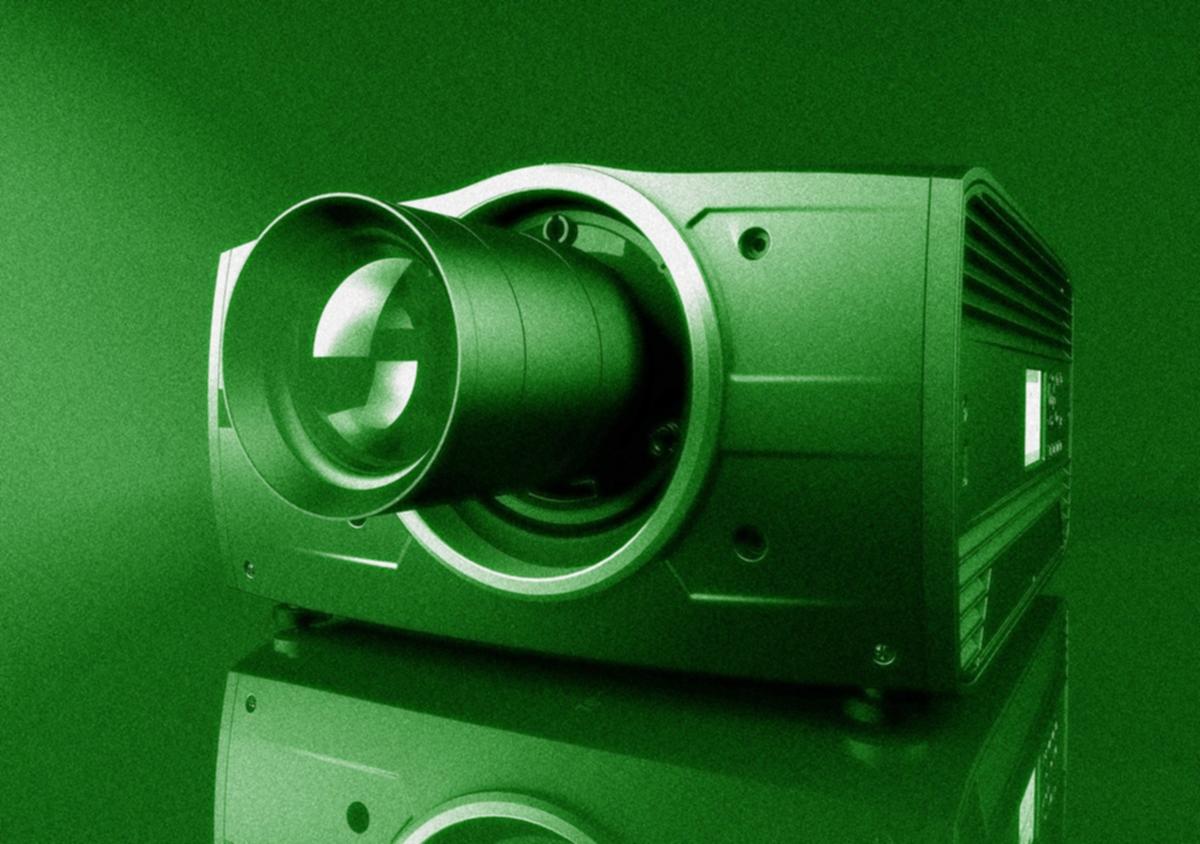

FS70-4K6

4K UHD laser-phosphor projector with NVG stimulation
  • Designed for simulation
  • Night Vision Goggles simulation
  • 4K UHD resolution
  • Durable and robust for 24/7 operation
  • High brightness (5,000 lumen)
  • Long lifetime (up to 60,000 hours)

The FS70-4K6 is a laser-phosphor projector with native WQXGA and up to 4K UHD resolution that was built specifically for simulation applications. This dedicated IR projector is the answer to the simulation market's specific requirements - including high robustness, longer lifetime, and laser-sharp image quality. It also allows for full individual control of visual and IR intensity to stimulate NVGs with IR transmission at 740nm. Dual iris and optical filters ensure better contrast and higher black levels.

Fitted with a protective metal that encases the entire projector, Barco’s FS70 is robust enough to withstand a motion platform's rapid and sudden movements, making it the perfect choice for this type of application. With a lifetime of up to 60,000 hours (depending on the mode of operation), the FS70 is one of the most durable projectors on the market today.

Designed for 24/7 use

The FS70 is designed for performance and reliability. With the Constant Light Output functionality, the projector produces predictable and constant brightness and color over an extended period of time. And thanks to Barco’s unique and proprietary Single Step Processing (SSP®) technology, all image processing for 4K UHD − including warp, blend, gamma and color − is calculated in a single operation. Performing this procedure in just a single step produces a much higher overall image quality, with a sharper image, fewer artifacts and less latency. The design of the FS70-4K6 also takes into account the mounting requirements and suite of lenses − making the FS70 series the perfect choice for technology upgrade decisions.

Brighter, better

With brightness levels in simulation configurations of up to 5,000 lumens, the FS70-4K6 is one of the brightest single-chip DLP projectors on the market with 4K UHD resolution. Features especially designed for simulation include Smear Reduction Processing (SRPTM), dual input WQXGA @120HZ (4K UHD @60Hz), dual iris and optical filters for better contrast and higher black levels, as well as optics purpose designed for NVG stimulation.

Specifikációk

Brightness 5,000 center lumens
Contrast ratio 1800:1 sequential, 50,000:1 dynamic
IR for NVG yes
Brightness uniformity 90%
Aspect ratio 16:10
Projector type 1DLP laser phosphor
Resolution 3,840 x 2,400 (4K UHD) / 2,560 x 1,600 (native)
Lens type FLD/FLD+
Optical lens shift Up to 134% lens shift, depending on lens.
Motorized zoom, focus, vertical and horizontal shift, iris** and shutter.
Color correction P7 RealColorTM
CLO (constant light output) Yes*
Light source Laser phosphor
Light source lifetime Up to 60,000** hours, depending on mode of operation
Sealed DLP™ core Yes
Orientation 360° rotation, no restrictions
3D Active stereoscopic 3D*
Image processing Embedded warp & blend engine*
Keystone correction Yes
Inputs HDSDI
2x DP1.2
2x dual link DVI-I
HDBaseT** (upgradeable)
HDMI1.4 **(2.0 upgradeable)
RJ 45 Ethernet
DMX in/out **(upgradeable)
RS232 in
2x USB
12v out
Input resolutions Including and up to:
3,840 x 2,400 @ 60Hz
3,840 x 2,160 @ 60Hz
4,096 x 2,160 @ 60Hz
2,560 x 1,600 @ 120Hz
Software tools Projector Toolset
Control IR, RS232, RJ45
Network connection IR, RS232, RJ45
Power requirements 100-240V / 50-60Hz
Power consumption 1,100 W Max.
BTU per hour Max 4,000 BTU/h
Noise level (typical at 25°C/77°F) 36 dB(A)
Operating temperature 10 - 40 °C (sea level)
Storage temperature -20 to 60 °C
Operating humidity 20 - 80% RH
Storage humidity 10 - 90% RH
Dimensions (WxLxH) 475 x 593 x 286 mm / 18,7 x 23,3 x 11,2 in
Weight 37 kg / 81,5 lbs
Standard accessories Power cord, wireless remote control
Certifications CE, FCC Class A and cNus
Warranty Limited 3 years parts and labor. Extendable up to 5 years
Notes * SW upgradeable feature, available in Q2 2017
**HDMI2.0, HDBaseT ethernet and DMX available as software upgrade in Q2 2017
