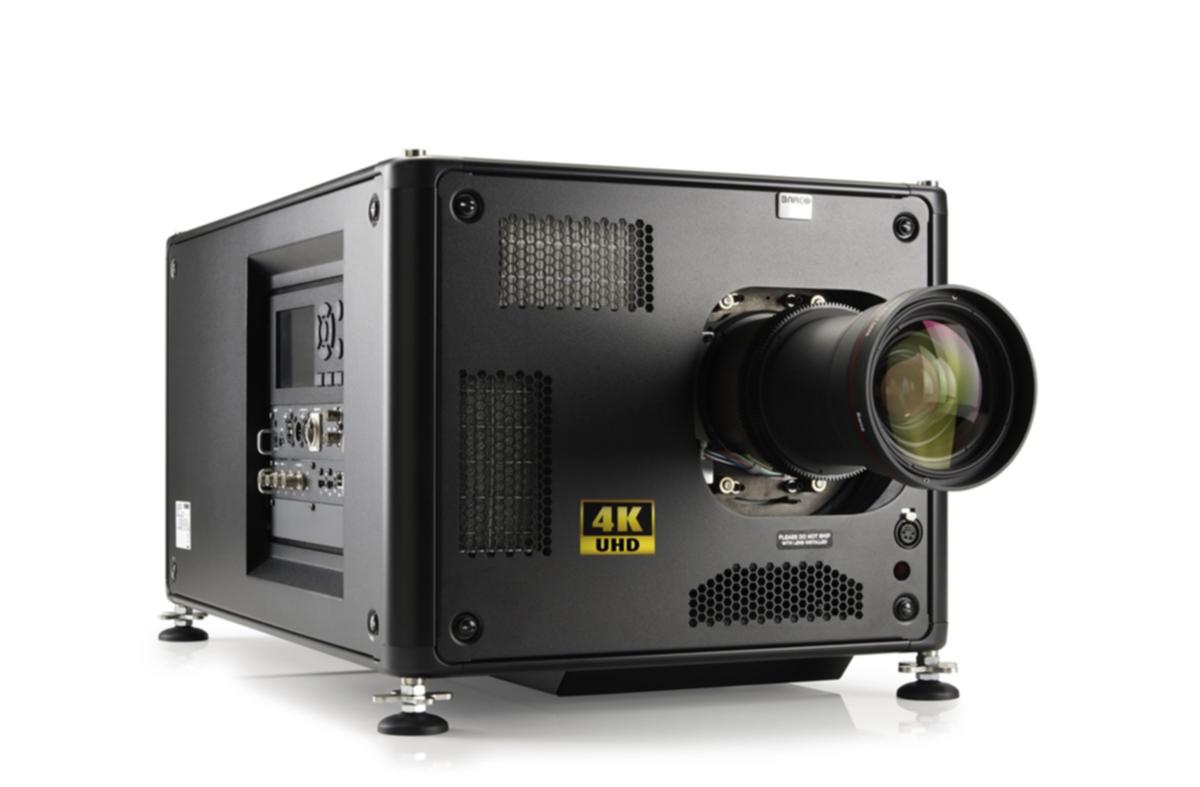

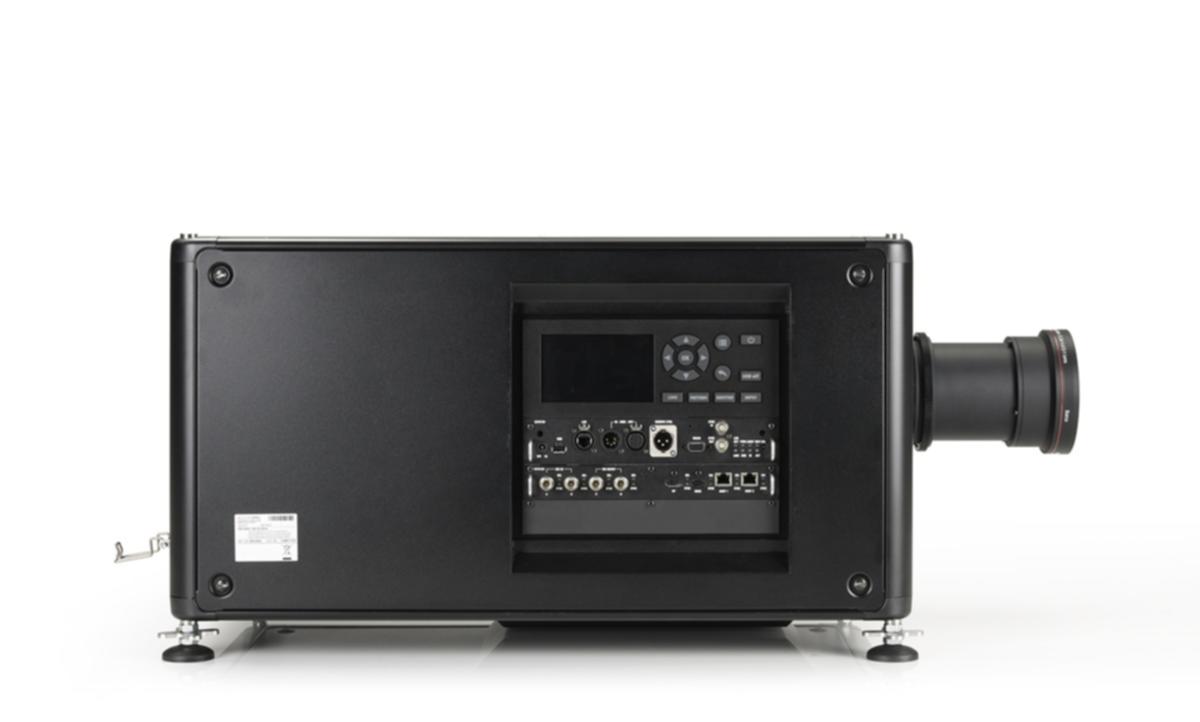

HDX-4K14

13,000 lumens, 4K UHD, 3-chip DLP projector
  • 4K UHD resolution for smooth, sharp images with fine detail
  • Advanced warping and blending with zero additional latency
  • Designed for life on the road

The HDX-4K14 offers 4K UHD resolution for superb image quality. This projector shares its lens range, ease of use, and modularity with the other HDX models. Thanks to its modular design of only five building blocks the HDX-4K14 is easy to service. Equipped with rental frames, the projector can easily be stacked or rigged. The HDX-4K14 shares its TLD lens suite with the other RLM, HDX, HDF, and FLM projectors. What's more, the TLD+ 0.8-1.16:1 lens offers extreme 120% vertical lens shift capability.

Excellent image quality

Equipped with 3-chip DLP® technology, a single high-brightness Xenon lamp, and a high-contrast optical engine, the HDX-4K14 excels in brightness, color accuracy, and stability. Thanks to its 4K UHD resolution this projector delivers smooth, sharp images with fine detail.

Scaling and input flexibility

Featuring a single-step processing electronics unit, the projector provides powerful scaling, handles all of the latest resolutions and offers advanced image warping and edge blending with zero additional latency. The HDX-4K14 supports HDMI 2.0, DisplayPort 1.2, HDBaseT and quad 6G HDSDI inputs

Specifikációk

Projector type 4K UHD 3-Chip DLP digital projector
Technology 0.90" DMD x 3 with sealed DMD core
Resolution 3,840 x 2,400 (4K UHD) / 2,560 x 1,600 (WQXGA native) / 16:10 aspect ratio
Light output 13,000 (WQXGA) / 12,000 (4K UHD mode) center lumens*
Contrast ratio 1,900:1 (standard) - 2,200:1 (high contrast mode)
Brightness uniformity 90%
ScenergiX horizontal and vertical edge blending
Lens range TLD+ 0.37, 0.65-0.85, 0.8-1.16; 1.16-1.5:1; 1.5-2.0:1; 2.0-2.8:1; 2.8-4.5:1; 4.5-7.5:1; 7.5-11.5:1
Optical lens shift Vertical: -30% to +120%/Horizontal: -40% to +40% on zoom lenses (memorized)
Color correction P7
Lamps 2.5 kW Xenon / lamp lifetime: 1,000 hours typical
Transport with lamp Yes
Lamp house, quick replace Yes
Customer bulb replace Yes
Lamp warranty (field replace/ factory replace) 90 days, 500 hours/pro rata 750 hours
Optical dowser Standard
Picture-in-picture Two sources simultaneously**
Orientation table - ceiling - side (portrait) (lamp door down/bottom) - vertical
DMX 512 Standard**
WARP direct adjust OSD + toolset
Image processing Embedded warp & blend engine
Keystone correction Yes
Integrated web server Yes
CLO (constant light output) standard**
3D active eyewear (optional), passive Infitec (optional), passive circular (optional), triple flash up to 200Hz**
Inputs Single HDBaseT, HDMI 2.0, DP 1.2, Quad SDI/HDSDI/dual HDSDI/Quad 3G HDSDI/BarcoLink
Optional Inputs Quad DP1.2
Input resolutions From VGA up to 4K (4,096 x 2,160)
Software tools Projection Toolset + Android app** + iOS app**
Control 10/100 Base-T, Rj -45 conn, Wifi ( opt), GSM (optional), XLR wired + IR , RS232, DMX 512**
AC power 110-­130V/200-­240V, 50­-60 Hz
Power consumption 2,750 W / STBY<8W
Noise level (typical at 25°C/77°F) 50 dB (A)
Operating temperature 0 ~ 40°C / 32 ~ 104°F
operation humidity no condens 0% - 80%
Dissipation BTU Max. 5800 BTU/h @ (110-130V) / Max 8871 BTU/h
Dimensions (WxLxH) 475 x 725 x 382 mm (18.70" x 28.54" x 14.96")
Weight 50kg (110lbs)
Shipping Dimensions (WxLxH) 650 x 900 x 560 mm (25.59" x 35.43" x 22.04")
Standard accessories Power cord; wireless/XLR wired rugged remote control
Certifications Compliant with UL60950-1 and EN60950-1, complies with FCC rules & regulations, part 15 Class A and CE EN55022 Class A, RoHS
Warranty 3 years standard
+/- 10%
** SW upgradable. Please contact an authorized Barco representative for details.
