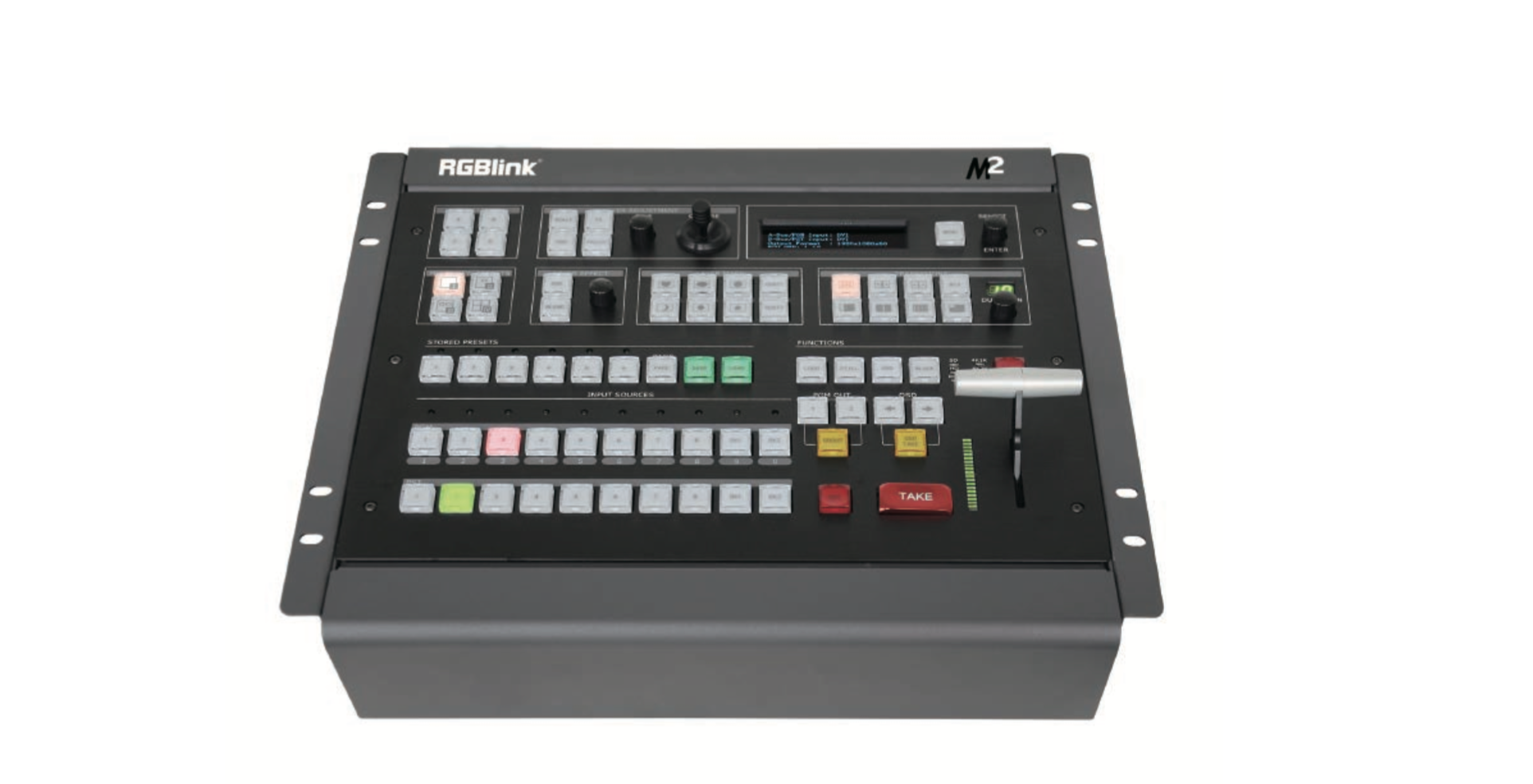

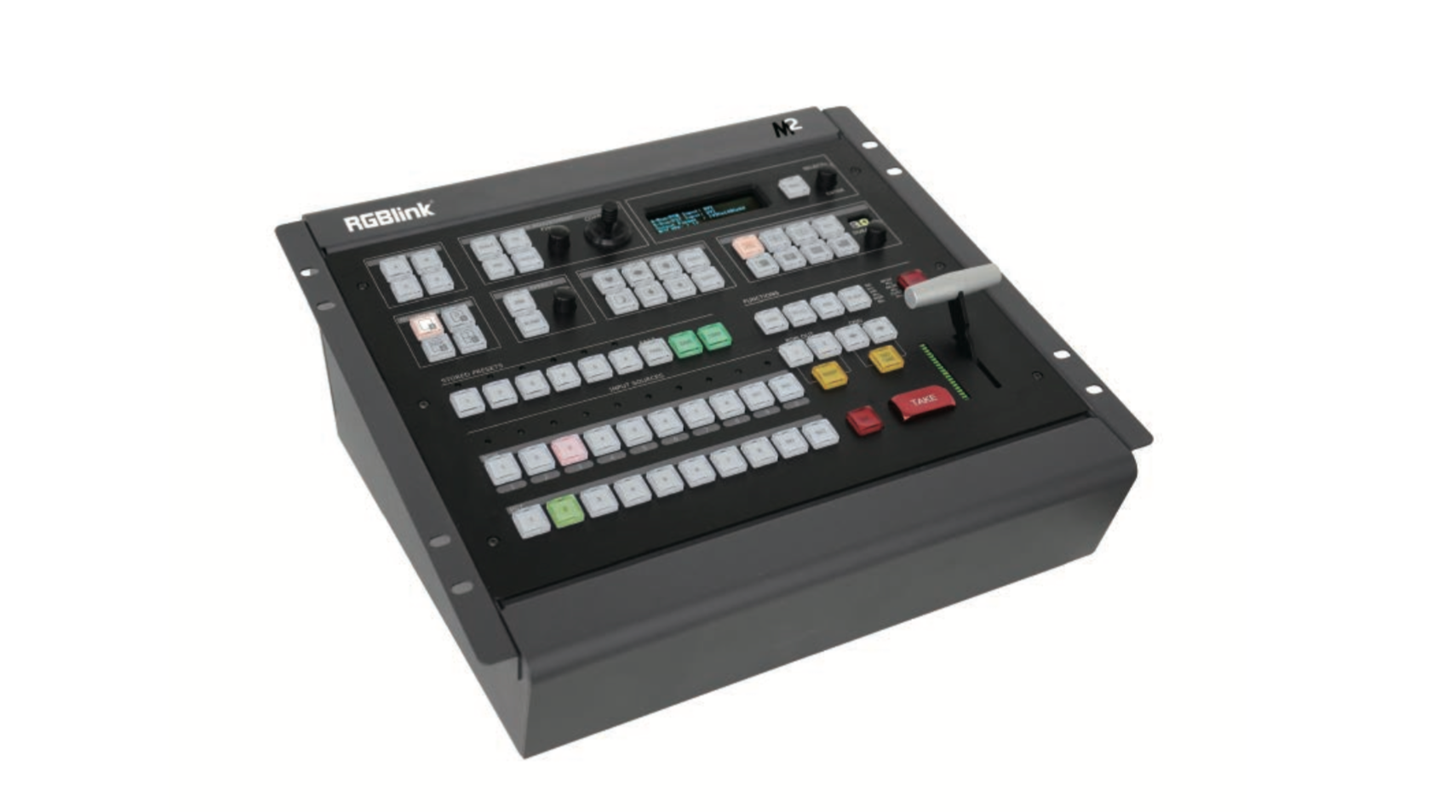

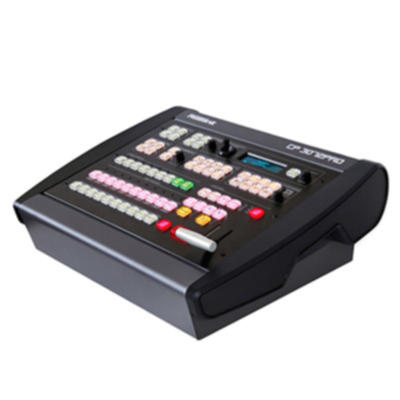

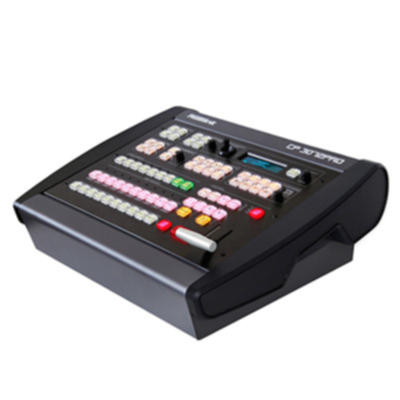

M2 | CP3072pro

Vision Mixer & Scaler
  • Integrated Vision Mixer & Scaler
  • 5 mega pixel capacity
  • Three output option modes – Dual 2K, 4Kx1K & 4K
  • Select or set output resolutions to any requirement
  • Dedicated source Preview output with Multiview
  • Wide range of transition effects built in
  • Position, Scale, Crop video layers freely

All-in-one scaling with a choice of input options,  output operations, controllable transitions from the t-bar, layer masks and a lot more.

M2 (also known as CP3072pro) redefines modern hands on scaling and mixing and is ideal for conference rooms, presenation spaces and houses of worship.

Totally modular and flexible in configuration, M2  is packed with standard features to impress and present with ease.


Key Features

  • Integrated Vision Mixer & Scaler
  • 5 mega pixel capacity
  • Three output option modes – Dual 2K, 4Kx1K & 4K
  • Select or set output resolutions to any requirement
  • Dedicated source Preview output with Multiview
  • Wide range of transition effects built in
  • Up to 3 video layers including background for presentation Program to Preview applications
  • Position, Scale, Crop video layers freely
  • DSK/Key on foreground video layers
  • Wide range of Masks can be applied to any foreground video layer
  • Variable edge blending on foreground layers
  • Additional three independent layers for OSD, LOGO and STILL
  • Connect up to 9 video inputs
  • Tally support built-in
  • Genlock support built-in
  • Modular construction – wide range of input options to choose from
  • Flexible control and configuration

Specifikációk

Connectors
Inputs
Input Video:
Up to 9 inputs - select from Input Module Options
Outputs
PGM Output:
2 × HDMI
PST Output:
2 × HDMI
PVW Output:
1 × HDMI
1 × VGA
Communication Ports
Tally
2 × DSUB-15
Integration
DSUB-15
Settings
USB-A
LAN
TCP/IP
Performance
Input Resolution
DVI:
VESA:    800x600 | 1024x768 | 1280x1024 | 1600x1200 | 1920x1080 | 1920x1200 | 2048x1152
HDMI:
SMPTE: 480i | 576i | 720p | 1080i | 1080p
VESA:    800x600 | 1024x768 | 1280x720 | 1280x800 | 1280x960 | 1280x1024 | 1400x1050 | 1600x1200 |
 1920x1080 | 1920x1200 | 2048x1152
SDI:
480i | 576i |720p | 1080i | 1080p | 1080psf
VGA:
800x600 | 1024x768 | 1280x1024 | 1600x1200 | 1920x1080 | 1920x1200
Refresh Rates:
23.98/24/25/29.97/30/50/59.94/60Hz
Output Resolution
Select from standard set or select user configurable
SMPTE:
1080p | 720p
1280x720 | 1920x1080
VESA:
800x600~ 2560x816
Refresh Rates:
23.98 | 24 | 25 | 29.97 | 30 | 50 | 59.94 | 60
*Not all resolutions supported on VGA
Genlock
480i | 576i | 720p@50/59.94 | 1080i@50/59.94 | 1080p@50/59.94/60
Support Standard
SDI:
SMPTE 425M (Level A) | SMPTE 424M | SMPTE 292M | SMPTE 259M-C | DVB-ASI
VGA:
VGA-UXGA
DisplayPort
1.0
DVI:
1.0
HDMI:
1.3
Power
Input Voltage
AC 85~264V 50/60Hz
Max Power
120W
Environment
Temperature
 -25℃~55℃
Humidity
10%~90%
Physical
Weight
10.65kg (Net Weight)
Dimensions
462mm x 405.7mm x 170.2mm (Device Dimension)
