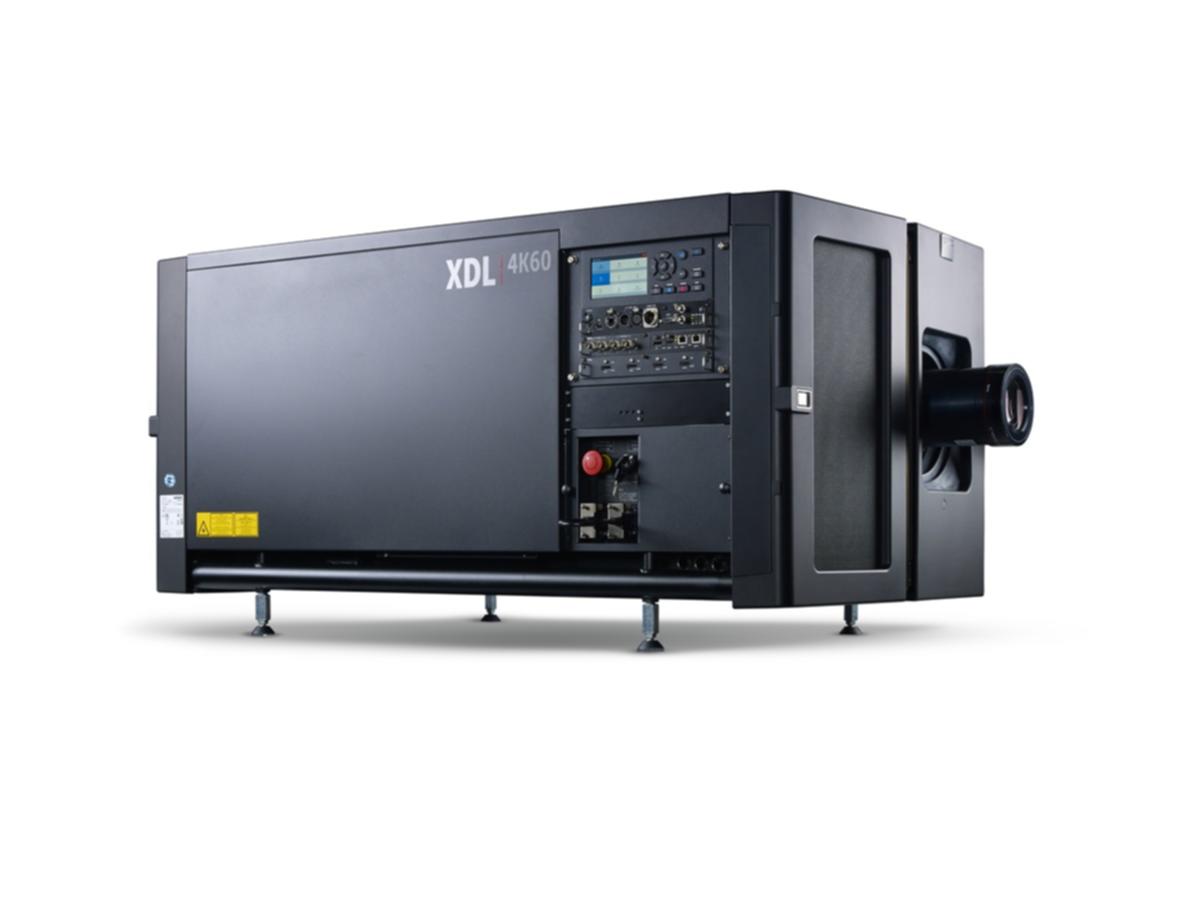

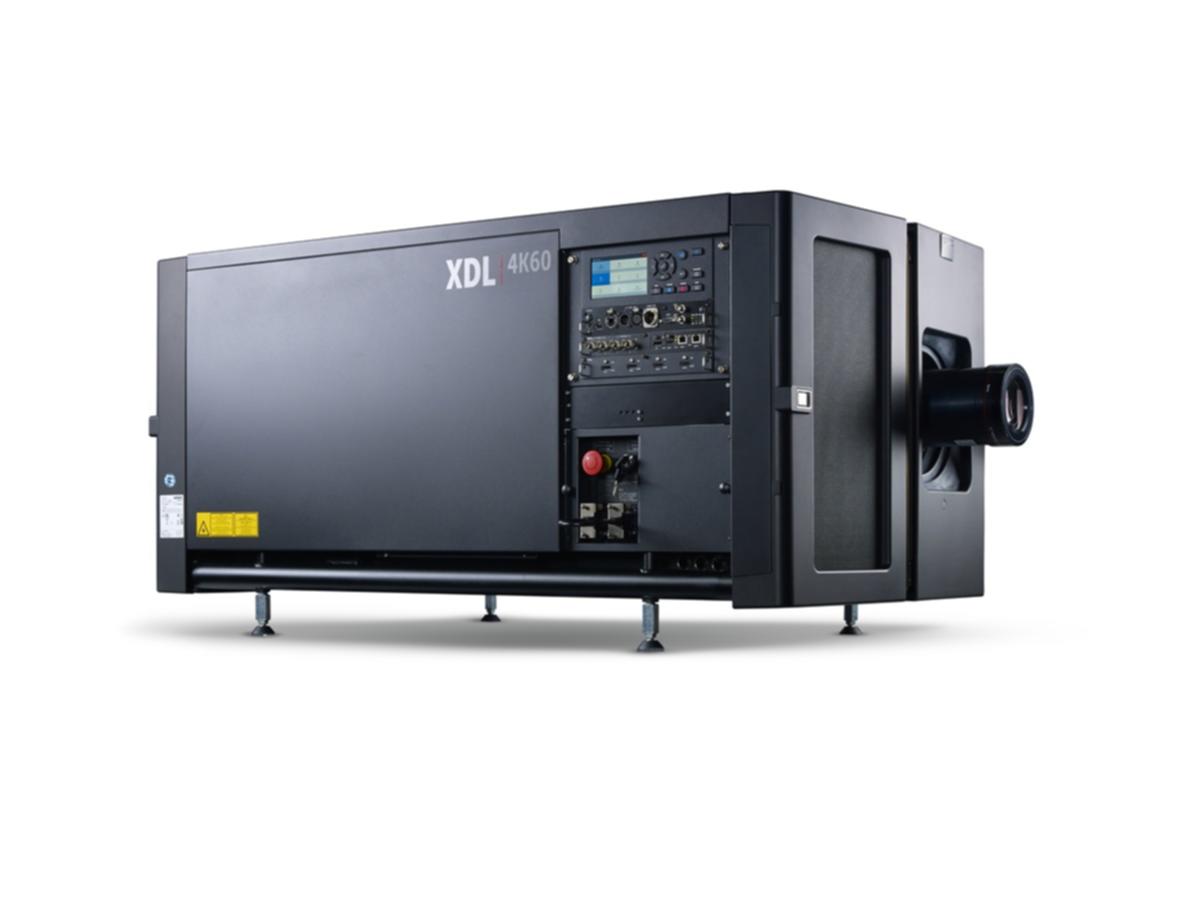

XDL-4K60

60,000 lumens, 4K, 3-chip DLP RGB laser large venue projector
  • Stunning experiences thanks to high-brightness 4K images in REC 2020 colors
  • Low total cost of ownership thanks to laser light source and brightness levels
  • Reduced installation time through zero alignment

The XDL-4K60 generates no less than 60,000 lumens brightness with colors that are just extraordinary. For bigger screens, more pixels, more impact. Plus incredible RGB laser performance, signal flexibility up to a comfortable 120 Hz, and no alignment.

Images that speak

Offer visitors crisper, more realistic contrast for greater impact with images of breathtaking depth thanks to their native 4K resolution up to 120Hz. And when you need it, use brightness up to a massive 60K lumens.

Cost-saving design

Want to drive down your cost-per-lumen? A single XDL is the answer.  Their RGB laser light source slash image flicker and lamp-related costs and maintenance (such as lamp replacements). Compared to xenon projectors, the XDLs also consume 40% less power - and you can re-use your existing Barco XLD+ lenses. Truly reliable, expect a lifetime of up to 20,000 hours with minimum downtime.

Easy to set up and use

Installing one projector is always easier than having to install several. It means less equipment to transport and set up – and fewer possible points of failure. XDL speeds up installation by reducing alignment time. The projectors provide an exceptional lens shift of up to 100% so you can install them anywhere you like. You can also easily match images to your projection surface using on-board real-time warping and blending.

3D that really stands out

Get the absolute most impact with superb 3D performance based on color separation using twin wavelengths and a more effective use of light. Forget the issue of ghosting – there is none. And project onto white rather than silver screens.

Specifikációk

Projector type Native 4K 3-chip DLP digital projector up to 120 Hz
Technology 1.38" DMD™ x3
Resolution 4,096 x 2,160
Brightness Up to 56,000 center lumens using HC lenses / Up to 60,000 center lumens using HB lenses
Native contrast ratio 2,800:1 (typical using HC lenses) / 500:1 ANSI contrast (typical) | 2,000:1 (typical using HB lenses) / 450:1 ANSI contrast (typical)
Prime lenses HC: 1.13-1.72; 1.35-1.86; 1.46-2.10; 1.65-2.60; 2.00-3.35 / HB : XLD 0.8; 1:0 ; 1.45-1.8; 1.8-2.4; 2.2-3.0; 2.8-5.5; 5.5-8.5
Optical lens shift V: -100% to +100% / H: +/- 40% (lens dependent)
Light source Direct coupled RGB lasers 6P
Light source lifetime 20.000 hours*
Color correction P7
Optical dowser Standard
Orientation Tilt 45° up and 30° downwards | Rotation – 20 degrees / +90 degrees (=Portrait)
Sealed DLP™ core Standard
Inputs Slot 1 :Dual HDBt; HDMI 2.0 (HDCP 2.2); DP 1.2 (HDCP 1.3); Quad SDI/HDSDI/dual HDSDI/6G/BarcoLink | Slot 2: Quad DP1.2
Input resolutions From NTSC up to 4K (4,096 x 2,160) 120 Hz
Picture-in-picture Two sources simultaneously
CLO (constant light output) Standard
ScenergiX Horizontal and vertical edge blending
Image processing Embedded warp & blend engine
Keystone correction Yes
Integrated web server Yes
Software tools Projector Toolset
Control XLR wired + IR, RS232, Wifi, GSM (opt)
Network connection 10/100 base-T, RJ-45 connection, Wifi (optional)
Dimensions (WxLxH) Projector: 744 x 1,445 x 706 mm / 29.3 x 56.9 x 27.8 inches (with feet, no lens) | Two chillers, each with the following dimensions: 701 x 701 x 800 mm / 27.6 x 27.6 x 31.5 inches
Weight Projector: 235kg (~520lb) / Chillers: ~115kg (~250lb) per chiller (two chillers needed)
Cooling liquid hose length 2.5-5-10m (8.2-16.4-32.8ft)
Power requirements Projector: 200-240/346-415V 50-60Hz 16A 3W+N+PE (Y connection) / Power cord size range: 4 sq mm to 6 sq mm, 10AWG to 8AWG /Circuit breaker range: 25A to 40A | 200-240V 3W+PE 28A 50-60Hz (/\- connection) / Power cord size: 6 sq mm, 8AWG / Circuit breaker: 40A
Chillers: 230/400V 3W+N+PE 16A, 2.5 sq mm (Y connection) or 208V / 3W+PE (/\- connection) / Max. 16A per phase
Ambient temperature 10-35°C (95°F) Max. (projector and chillers)
Operational humidity 5-80% (non condens)
Power consumption Projector @ full laser power: 6.7 kW (2D or Polarization 3D) / 3.6 kW (Barco Laser3D - 6P)
Chillers @ full laser power: 3.0 kW (2D or Polarization 3D) / 2.5 kW (Barco Laser3D - 6P)
3D systems Color3D (Barco Laser3D): Native 6-primary color-3D system. Only requires color filter glasses / Active glasses systems / Polarization recuperation systems
Safety class Class 1, RG3
Certifications CE; ETL/UL/FCC
*Note *Less than 20% decrease during a runtime of 20,000 hrs
