Specifikációk

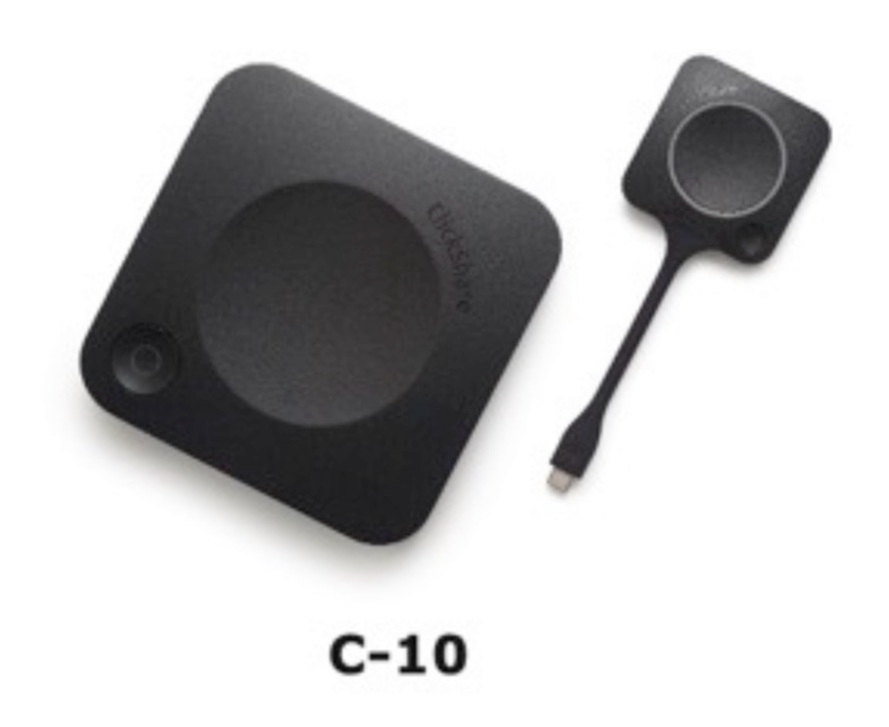

Specifikáció, Barco ClickShare Present C-5, C-10

ClickShare Base Unit dimensions:

Dimensions (HxWxD)34 mm x 135 mm x 135 mmPower supplyStandard 110/220 V AC plugPower consumptionOperational: 5-10W, 24W MaxWeight900 gr

Operating system:

Windows 8/8.1/10. macOS 10.13 and higher.
Android v9 and higher (ClickShare App)*
iOS 12 and higher (ClickShare App)*

Video outputs:

4K UHD (3840*2160) @ 30Hz. HDMI 1.4b

Audio output:

HDMI

USB1 X USB-A, 1 X USB-C

ClickShare Button

ClickShare AppDesktop & Mobile

Native protocols: Airplay, Google Cast, Miracast*

Noise LevelMax. 25dBA @ 0-30°C
Max. 30dBA @ 30-40°C

Authentication protocol:

WPA2-PSK in stand alone mode
WPA2-PSK or IEEE 802.1X using the ClickShare Button in network integration mode

Wireless transmission protocolI:

EEE 802.11 a/g/n/ac and IEEE 802.15.1

ReachAdjustable with signal strength modulation; max. 30m (100 ft) between ClickShare Button and ClickShare Base Unit
Frequency band 2.4 GHZ and 5 GHz

Frequency band:

2.4 GHZ and 5 GHz (DFS channels supported in select number of countries)

Connections:

1x Ethernet LAN 1Gbit
1x USB Type-C 2.0 (front); 1x USB Type A 2.0 (front)

Temperature rangeOperating:

 0°C to +40°C (+32°F to +104°F)
Max: 35°C (95°F) at 3000m
Storage: -20°C to +60°C (-4°F to +140°F)

HumidityStorage: 0 to 90% relative humidity, non-condensing
Operation: 0 to 85% relative humidity, non-condensing

Anti-theft systemKensington lock

CertificationsFCC/CE

Touch screen support & Interactivity/

Room Dock (peripheral support)No

Local view & moderationLocal view of the room display only

Network connectionLAN & WiFi

Management and reportingYes

Warranty1 year standard. 5 years coverage via SmartCare
