Front screen for basic configuration/control and confidence monitoring
Video inputs for HDMI and SDI
Audio inputs for line-level XLR, RCA, and USB
HDMI program out and pass-through for zero-latency content display
Custom layout builder for a tailored video program
Intuitive browser-based UI and local console
Cloud-based configuration and control via Epiphan Cloud
SRT, HLS, MPEG-DASH, RTMP, and RTMPS streaming protocol support
Secure Sockets Layer (SSL)
• Comprehensive integration with Kaltura and Panopto
• Power over Ethernet Plus (PoE+) and DC power • Save recordings directly to an SD card
(user supplied)
• Expansion bay for user-supplied M.2 SATA SSD
• Automatically transfer recordings to a USB drive or networked server
• 802.1x network access control
• Lightweight Directory Access Protocol (LDAP) • Integration with Crestron Systems
-The most reliable, all-in-one video production system that's small in size and big on pro features. Record, stream, and switch up to 3 HD inputs simultaneously and take your video production to the next level with Pearl Mini.
-Connect any camera or video source
Be ready for anything. Pearl Mini allows you to work with HDMI, SDI, USB, DVI, SRT, and RTSP sources. No signal converters or scalers necessary
-Custom layout designer
Design your own custom layouts, including picture
in picture and image overlays, using the drag-and-drop editor in Pearl Mini’s web-based Admin panel. Combine, crop, and scale HD video sources.
Add overlay images, text, timestamping, and more
-Pro audio support
Use mic-level XLR (phantom) and 3.5mm inputs
or line-level 1/4" TRS and RCA inputs. Built-in attenuation and gain control mean you get perfect sound fidelity.
-Stream to viewers everywhere
Simultaneously live stream to YouTube, Facebook or any other CDN. Supported protocols include SRT, HLS, MPEG-DASH, RTMPS and more. At the same time, use the built-in streaming server to stream locally to web browsers and set-top boxes.
-Switch video sources live
Incredibly easy to use, Pearl Mini's touchscreen makes switching between your connected sources or layouts a breeze. Or use the web-based Epiphan Live to do remote monitoring and switching from your phone or tablet.
-1080p HD recordings
Pearl Mini's hardware-accelerated encoder provides flawless H.264 encoding for maximum performance. Record as produced program out or as
individual ISOs.
-Local video output
Send your content to front of house or to a larger confidence monitor with Pearl-Mini’s HDMI video output. Configure to share any input source orswitched program output
-Remote login
Login to your Pearl Mini securely from anywhere over an Internet connection. Quickly take control of Pearl Mini for remote rescue troubleshooting,support technicians in the field, control recording, switching, and more.

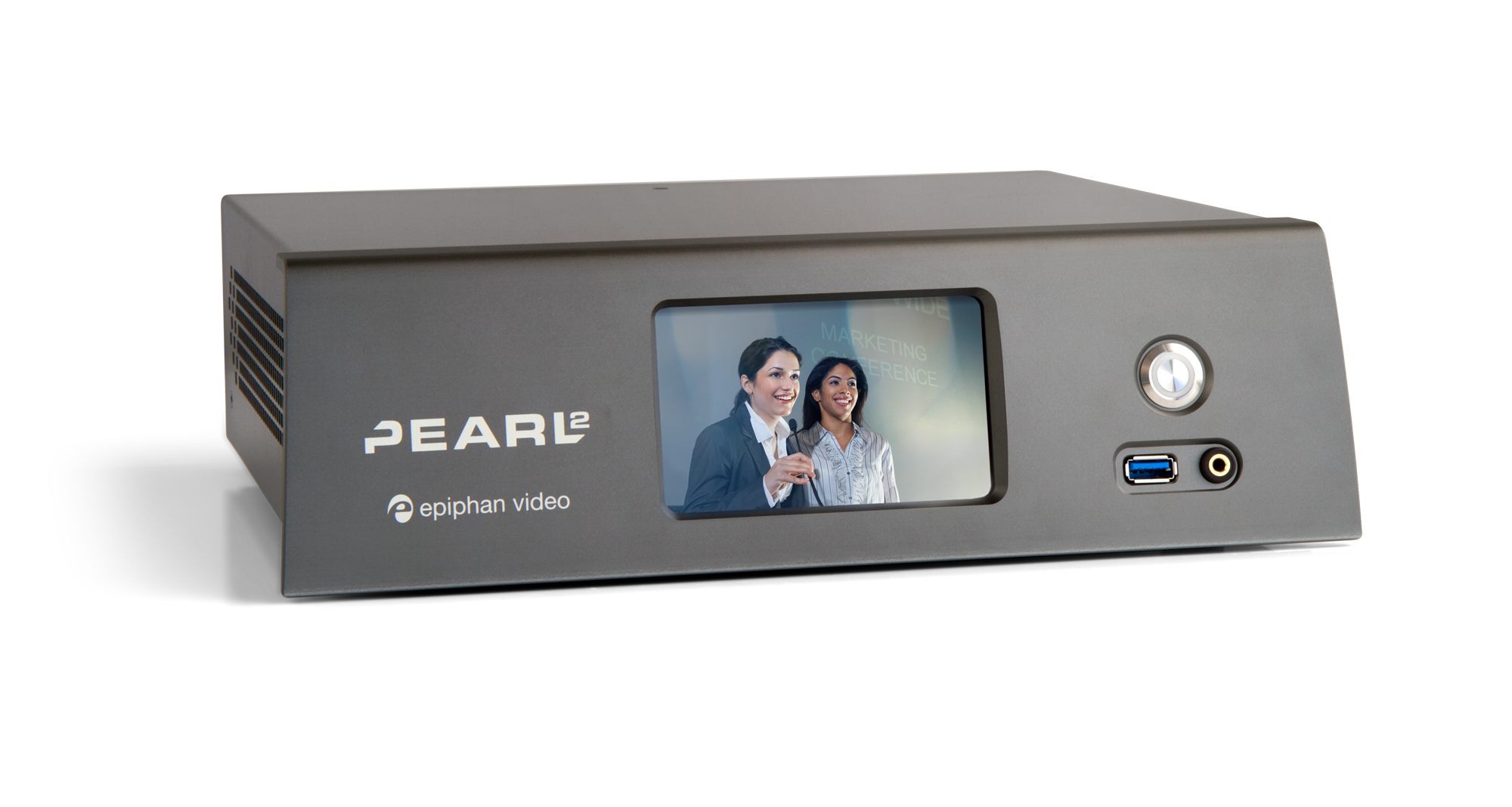

Epiphan Pearl-2-All-in-one live video production
- Reliable, simple live streaming with Pearl-2’s integrated live video production workflow. Manage your streaming, recording, and live switching in one place with this easy-to-use video production system.
-Harness the power of Pearl-2’s 6th generation Intel processor to capture stunning 4K video at 30 fps. Use Pearl’s default hardware-accelerated H.264 encoding for maximum compatibility and performance, or choose M-JPEG.
-Capture embedded audio from HDMI, SDI, USB, and networked sources or use the XLR/RCA ports for professional level audio from mixing consoles and sound equipment. Built-in attenuation and gain adjustment mean you get perfect sound fidelity
-Let Pearl-2 set everything for you automatically, or use the web-based Admin panel to configure bitrate, frame size, layouts, and more!
-Show any source or program channel at front of house or on a larger confidence monitor at up to 4K using Pearl-2’s HDMI output ports.
-Hold hundreds of hours of HD recordings on the 512 GB solid state hard-drive and configure automatic file transfer to a local USB drive with USB 3.0 file transfer speed or to network drives
-Capture 6 video sources at once
Pearl-2 works with any video source from SD to 4K! Capture 4K from HDMI, SDI, USB, SRT, and NDI sources and up to 1080p from IP cameras over RTSP.
-Stream to viewers everywhere
Simultaneously live stream to YouTube, Facebook or any other CDN. Supported protocols include SRT, HLS, MPEG-DASH, RTMPS and more. At the same time, use the built-in streaming server to stream locally to web browsers and set-top boxes.
-Switch video sources live
Incredibly easy to use, Pearl-2's touchscreen makes switching between your connected sources or layouts a breeze. Or use the web-based Epiphan Live to do remote monitoring and switching from your phone or tablet.
-Create custom layouts
Completely customizable, drag and drop layouts with cropping, chroma key, custom backgrounds, text, timestamping, and image overlay support.
