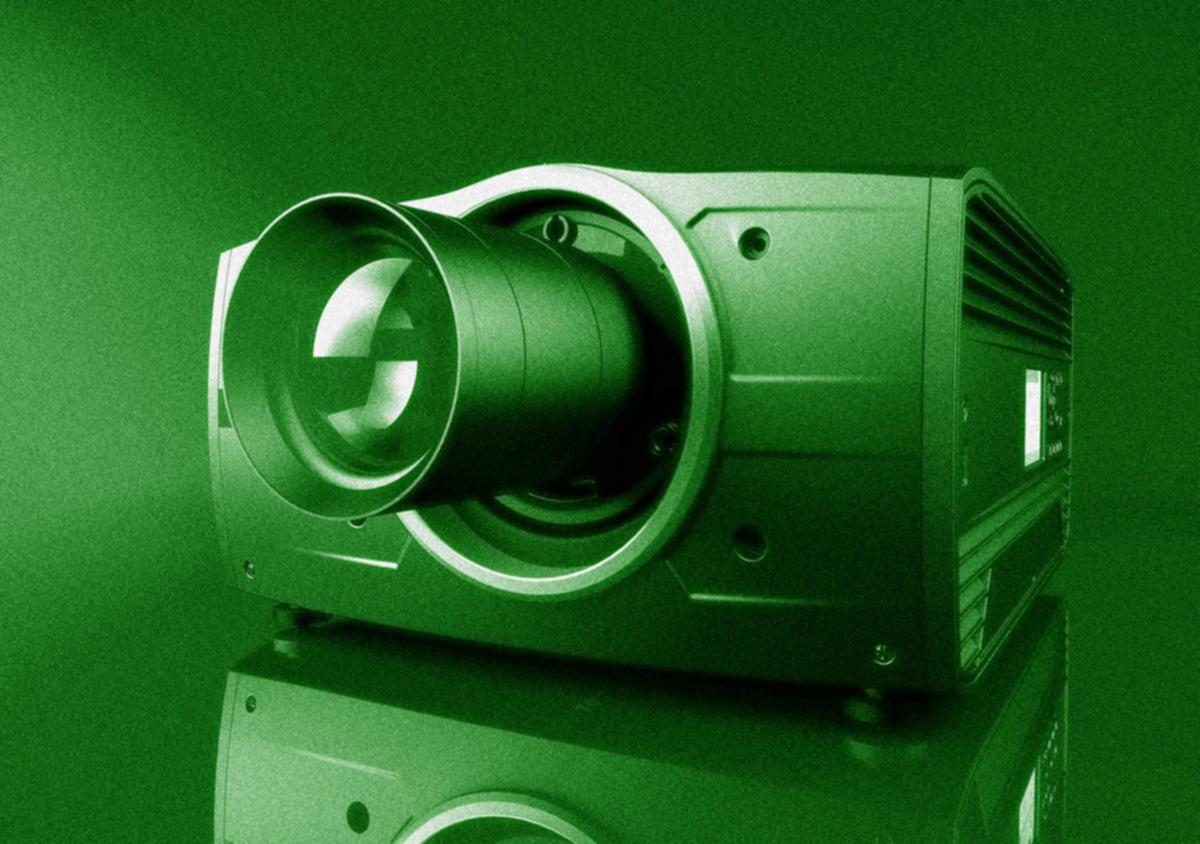

FS70-W6

WUXGA laser-phosphor projector with NVG stimulation
  • Designed for simulation
  • Night Vision Goggles stimulation
  • Durable and robust for 24/7 operation
  • High brightness (5,500 lumen)
  • Long lifetime (up to 60,000 hours)

The FS70-W6 is a laser-phosphor projector with WUXGA resolution that was built specifically for simulation applications. This dedicated IR projector answer to the simulation market's specific requirements - including high robustness, longer lifetime, and laser-sharp image quality. It also allows for full individual control of visual and IR intensity to stimulate Night Vision Goggles with IR transmission at 740nm. Dual iris and optical filters ensure better contrast and higher black levels.

Fitted with protective metal encasing the entire projector, Barco’s FS70 is robust enough to withstand a motion platform's rapid and sudden movements, making it the perfect choice for this type of applications. With a lifetime of up to 60,000 hours (depending on the mode of operation), the FS70 is one of the most durable projectors on the market today.

Designed for 24/7 use

The FS70 is designed for performance and reliability. With the Constant Light Output (CLO®) functionality, the projector produces predictable and constant brightness and color over an extended period of time. Designed specifically for training during dawn, day, dusk, and night, the FS70 offers the latest infrared technology that ensures an extremely realistic NVGs training experience alongside dimming possibilities from 0-100%, ensuring  optimal training at any time of day. The design of the FS70 also takes into account the mounting requirements and suite of lenses, making the FS70 the perfect choice for technology upgrade decisions.

Brighter, better

With brightness levels in simulation configurations of up to 5,500 lumens, the FS70 can effortlessly meet the requirements of any simulation system. This means that, along with minute details, you also have the matching brightness to see every single aspect of the simulation scene in absolute clarity. Features especially designed for simulation include Smear Reduction Processing (SRPTM), dual input @120HZ, dual iris and optical filters for better contrast and higher black levels, as well as optics purpose designed for Night Vision Goggle stimulation.

Specifikációk

Brightness 5,500 center lumens
Contrast ratio 1,800:1 sequential, 50,000:1 dynamic
IR for NVG yes
Brightness uniformity 90%
Aspect ratio 16:10
Projector type 1DLP laser phosphor
Resolution 1,920 x 1,200 (WUXGA)
Lens type FLD/FLD+
Optical lens shift Up to 134% lens shift, depending on lens.
Motorized zoom, focus, vertical and horizontal shift, iris** and shutter.
Color correction P7 RealColorTM
CLO (constant light output) Yes*
Light source Laser phosphor
Light source lifetime Up to 60,000** hours, depending on mode of operation
Sealed DLP™ core Yes
Orientation 360° rotation, no restrictions
3D Active stereoscopic 3D*
Image processing Embedded warp & blend engine*
Keystone correction Yes
Inputs HDSDI
2x DP1.2
2x dual link DVI-I
HDBaseT** (upgradeable)
HDMI1.4 **(2.0 upgradeable)
RJ 45 Ethernet
DMX in/out **(upgradeable)
RS232 in
2x USB
12v out
Input resolutions Including and up to:
1,920 x 1200 @ 60Hz
2,560 x 1,600 @ 120Hz
Software tools Projector Toolset
Control IR, RS232, RJ45
Network connection IR, RS232, RJ45
Power requirements 100-240V / 50-60Hz
Power consumption 1,100 W Max.
BTU per hour Max 4,000 BTU/h
Noise level (typical at 25°C/77°F) 36 dB(A)
Operating temperature 10 - 40 °C (sea level)
Storage temperature -20 to 60 °C
Operating humidity 20 - 80% RH
Storage humidity 10 - 90% RH
Dimensions (WxLxH) 475 x 593 x 286 mm / 18,7 x 23,3 x 11,2 in
Weight 37 kg / 81,5 lbs
Standard accessories Power cord, wireless remote control
Certifications CE, FCC Class A and cNus
Warranty Limited 3 years parts and labor.
Extendable up to 5 years
Notes * SW upgradeable feature, available in Q2 2017
**HDMI2.0, HDBaseT ethernet and DMX available as software upgrade in Q2 2017
