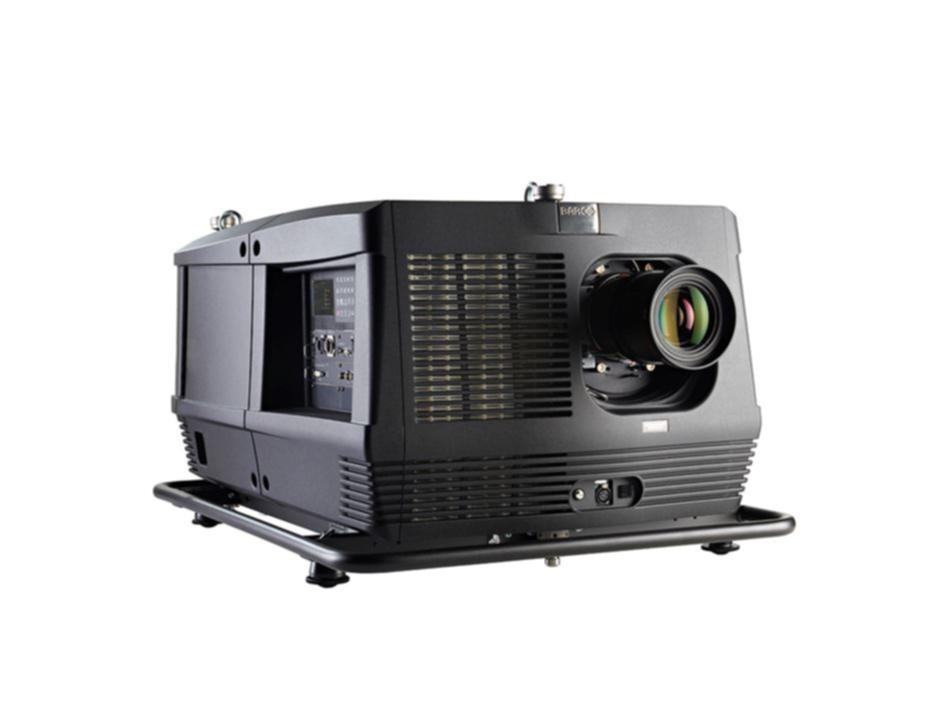

HDF-W22

22,000 lumens, WUXGA, 3-chip DLP projector
  • Advanced AthenaTM scaling technology
  • Designed for life on the road
  • Active 3D, quick preview, and wireless control

The ultra-bright and reliable HDF-W22 projector is a perfect fit for any large venue or event that requires extra brightness to show clear, crisp images in a brightly lit environment.

Reliable and powerful projection

With a light output of 22,000 lumens, the HDF-W22 displays superior images even in venues with lots of ambient light. Thanks to its 3-chip DLP technology, Xenon illumination and high-contrast optical engine, the HDF guarantees crisp images with rich colors on every occasion. What’s more, it is fully ready to support 3D projection. It has also been equipped with Barco’s high-end ImagePRO technology with Athena scaler for flexible scaling.

Wireless control and preview mode

In addition, the versatile HDF-W22 offers extended wireless control features via smart phone or tablet computer. The HDF-W22’s built-in color LCD screen provides all the information you need on your projector's status and allows you to preview your connected sources.

Designed for rental and staging

Building on Barco’s experience in the rental and staging market with the proven FLM family, the HDF has been designed with the road in mind. Its compact and modular design make it simple to install and service. Equipped with a top or bottom frame, the rugged projector can easily be rigged as well.

Fast signal distribution

Our proprietary BarcoLink technology guarantees swift signal distribution between Barco’s projectors and image processors. With BarcoLink, signals are distributed over a BNC coax cable, which is not only more durable but also enables you to lower your costs.

Specifikációk

Projector type WUXGA 3-chip DLP digital projector
Technology 0.96" DMD™ x3
Resolution 1,920 x 1,200
Brightness 22,000 center lumens / 20,000 ANSI lumens*
Contrast ratio 1,900:1 (standard) / 2,200:1 (high contrast mode)
Brightness uniformity 90%
Aspect ratio 16:10
ScenergiX Horizontal and vertical edge blending
Lens type TLD+
Lenses 0.73:1 ; 1.2:1 ; 0.8-1.16 ; 1.16-1.5:1 ; 1.5-2.0:1 ; 2.0-2.8:1 ; 2.8-4.5:1 ; 4.5-7.5:1 ; 7.5-11.5:1
Optical lens shift Vertical: -30% to +120% / Horizontal: -40% to +40% on zoom lenses (memorized)
Color correction P7
Lamps 3.8 kW xenon
Lamp lifetime 1,000 Hrs
Transport with lamp Yes
Lamp house, quick replace Yes
Customer bulb replace Yes
Lamp warranty (field replace/ factory replace) 90 days, 500 hours / pro rata 500 hours
Sealed DLP™ core Standard
Optical dowser Standard
Picture-in-picture Two sources simultaneously
Orientation table - ceiling - side (portrait)* - vertical
* lamp door down/bottom
Others can be controlled by DMX 512 console, warping
DMX 512 standard
WARP Direct adjust OSD + toolset
Image processing Embedded warp & blend engine
Keystone correction Yes
Integrated web server yes
CLO (constant light output) Standard
3D Active eyewear (optional), passive Infitec (optional), passive circular (optional), triple flash up to 200 HS
Inputs DVI-I (HDCP including analog RGB YUV), SDI/HDSDI/Dual HDSDI/3G/BarcoLink
Optional Inputs 5-BNC RGBHV (RGBS/RGsB, YUV CS/SOY, Composite video, S-Video); DVI-I (HDCP including analog RGB YUV) + BarcoLink/SDI/HDSDI/Dual HDSDI/3G; 3D active input (HDMI/DisplayPort) feat. SENSIO 3D
Input resolutions From NTSC up to QXGA (2,048 x 1,536)
Max. pixel clock 200 MHz
Software tools Projector Toolset + Android app
Control XLR wired + IR, RS232, Wifi, GSM (opt)
Network connection 10/100 base-T, RJ-45 connection, Wifi (optional)
Power requirements 200-240V / 50-60Hz
Max. power consumption 4,000W / STBY < 10W
Noise level (typical at 25°C/77°F) 58dB(A)
Operational ambient temperature 0-40°C / 32°-104°F
Operational humidity 0-80% (non condens)
Dissipation BTU Max. 13660 BTU/h
Dimensions (WxLxH) 707 x 1,025 x 548mm / 27.83 x 40.35 x 21.57 inches
Weight 99kg (218.25lbs)
Shipping Dimensions (LxWxH) 1,200 x 980 x 760 mm / 47.24 x 38.58 x 29.92 inches
Shipping Weight from Factory 151kg (333lbs)
Standard accessories Power cord; wireless/XLR wired rugged remote control, bottom rigging kit/clamps
Certifications Compliant with UL60950-1 and EN60950-1 complies with FCC rules & regulations, part 15 Class A and CE EN55022 Class A, RoHS
Warranty 3 years standard, extendable up to 5 years
+/- 10%
