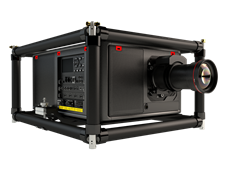

Barco UDM -4k22 Laser Projector

projektor

A BARCO UDM DLP lézerprojektorok 15-22 000 lumenes fényerejűek, 3 DLP-s technológia.


Specifications

Projector type

4K UHD 3-chip DLP digital projector

Technology

0.9" DMDTM x3

Resolution

3,840 x 2,400 (4K UHD) / 2,560 x 1,600 (native) / 5,120 x 3,200 (processing)

Brightness

20,000 (4K UHD) center lumens / 19,000 (4K UHD) ansi lumens*

22,000 ISO lumens*

Contrast ratio

2200:1

Brightness uniformity

95%

Aspect ratio

16:10

ScenergiX

Horizontal and vertical edge blending

Lenses

TLD+ 0,37; 0,65-0,85; 0,8-1,16; 1,25 -1.6:1 ; 1.5-2.0:1 ; 2.0-2.8:1 ; 2.8-4.5:1 ; 4.5-7.5:1 ; 7.5-11.5:1

Optical lens shift

Vertical between -100% to +130%, depending on lens

Horizontal up to +/- 40%, depending on lens

Motorized zoom and focus (with lens memory on TLD lenses)

Motorized lens shift (with position memory on all lenses)

Color correction

P7

Light source

Laser phosphor with inorganic phosphor wheel

Light source lifetime

>20,000 hrs

Optical dowser

Digital

Picture-by-picture

Two sources simultaneously

Sealed DLP™ core

Standard

Orientation

360°

DMX 512

Standard

WARP

Direct adjust OSD + toolset

Image processing

Embedded warp & blend

Processing

Pulse Electronics

Keystone correction

Yes

Integrated web server

Yes

CLO (constant light output)

Standard

3D

Active eye wear (optional), passive circular (optional); 2 flash up to 200Hz

Inputs

Single HDBaseT; HDMI2.0 (HDCP2.2, HDR10); DP 1.2 (HDCP1.3); Quad 3G/12G SDI/BarcoLink ULTRA

Optional Inputs

Quad DP1.2, Fiber SFP

Input resolutions

From NTSC up to 4K (4,096 x 2,160)

Refresh rates:

24hz to 120hz 4K/4KUHD (4096 x 2160 / 3860 x 2400) to 240hz WQXGA (2560 x 1600)

Max. pixel clock

600 Mhz

Software tools

Projector Toolset + Android** app + iOS** app

Control

XLR wired + IR, RS232, Wifi**, GSM**

Network connection

10/100 base-T, RJ-45 connection, Wifi**

Power requirements

120-160 V (reduced power)18.5A / 200-240V (+/- 10%), 13.5A, 50-60Hz

Max. power consumption

1800W nom/ 2400w max@230 volts ECO STBY<2W

1560W nom/ 1950w max @ 120 voltsECO STBY<2W

Noise level (typical at 25°C/77°F)

49 dB(A) (TBD)

Operational ambient temperature

0-40°C / 32°-104°F ***

Operational humidity

0-80% (non condens)

Dissipation BTU

Max. 6,900 BTU/h

Dimensions (WxLxH)

725 x 540x 339 mm / 28.54 x 21.26 x 13.3'

Shipping Dimensions

incl. pallet

(WxLxH) 850 x 665 x 613 mm / 33.46 x 26.18 x 24.13 inches

Weight

48 kg (105lbs) / shipping weight from factory: 61 kg (134.5 lbs)

Standard accessories

Power cord, wireless/XLR wired rugged remote control

Certifications

Compliant with UL60950-1 and EN60950-1, complies with FCC rules & regulations, part 15 Class A and CE EN55032 Class A, Rohs

Warranty

3 years

*Note

*Brightness levels +/- 10%

** Wifi and GSM options are not available in all countries. Check with your Barco representative for more info.

***at higher altitude light output might be dimmed

Specifikációk


 Barco  UDM-4K22 DLP 4K projektor:


 21,000 lumens, 4K UHD, 3-chip DLP digital large venue projector

Barco UDM in rental frame

UDM projector - side

Barco UDM in rental frame

Barco UDM projector in rental frame


  • A legkönnyebb  22K laser projector  a piacon
  • rugadized design
  • Remote management és  connectivity
  • Unified Pulse electronics with Single Step Processing technológia
