RGB laser ODLSF-721

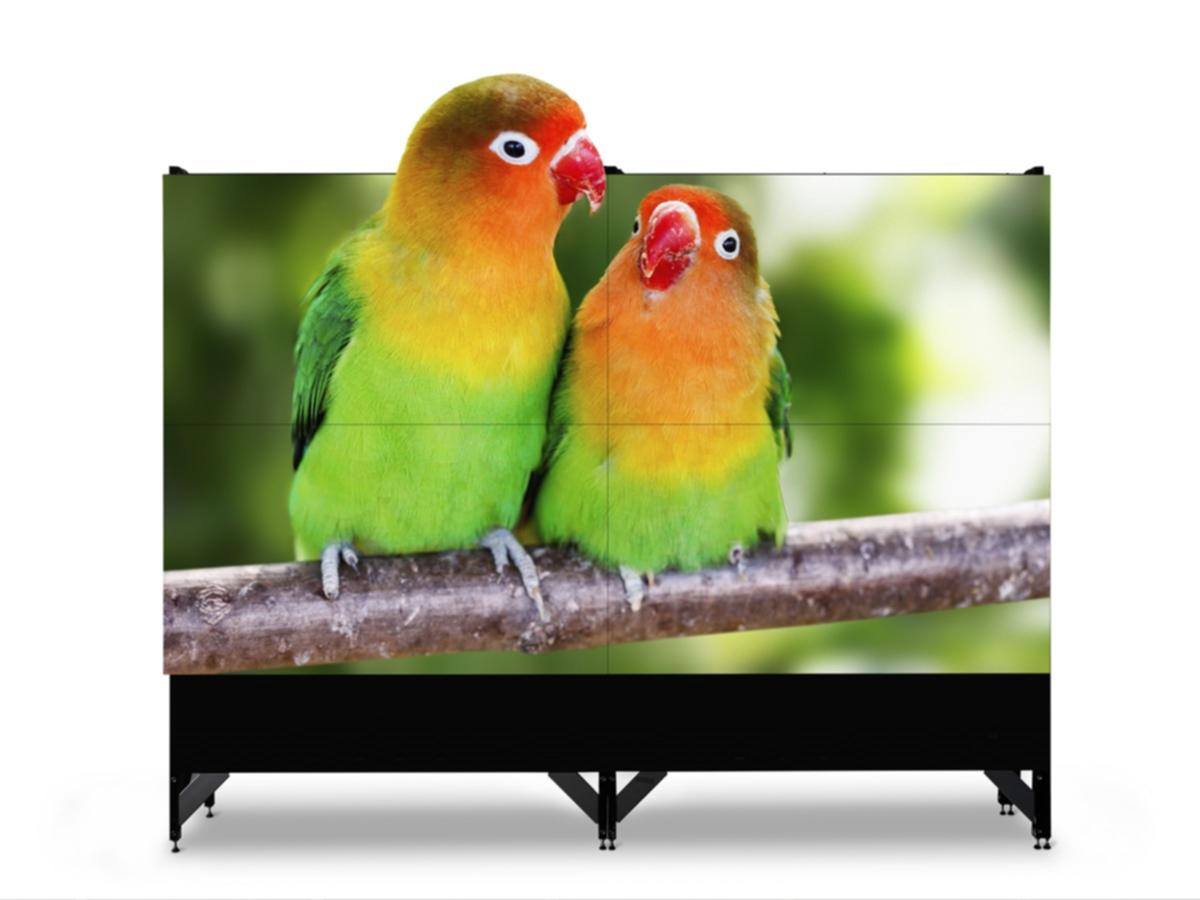

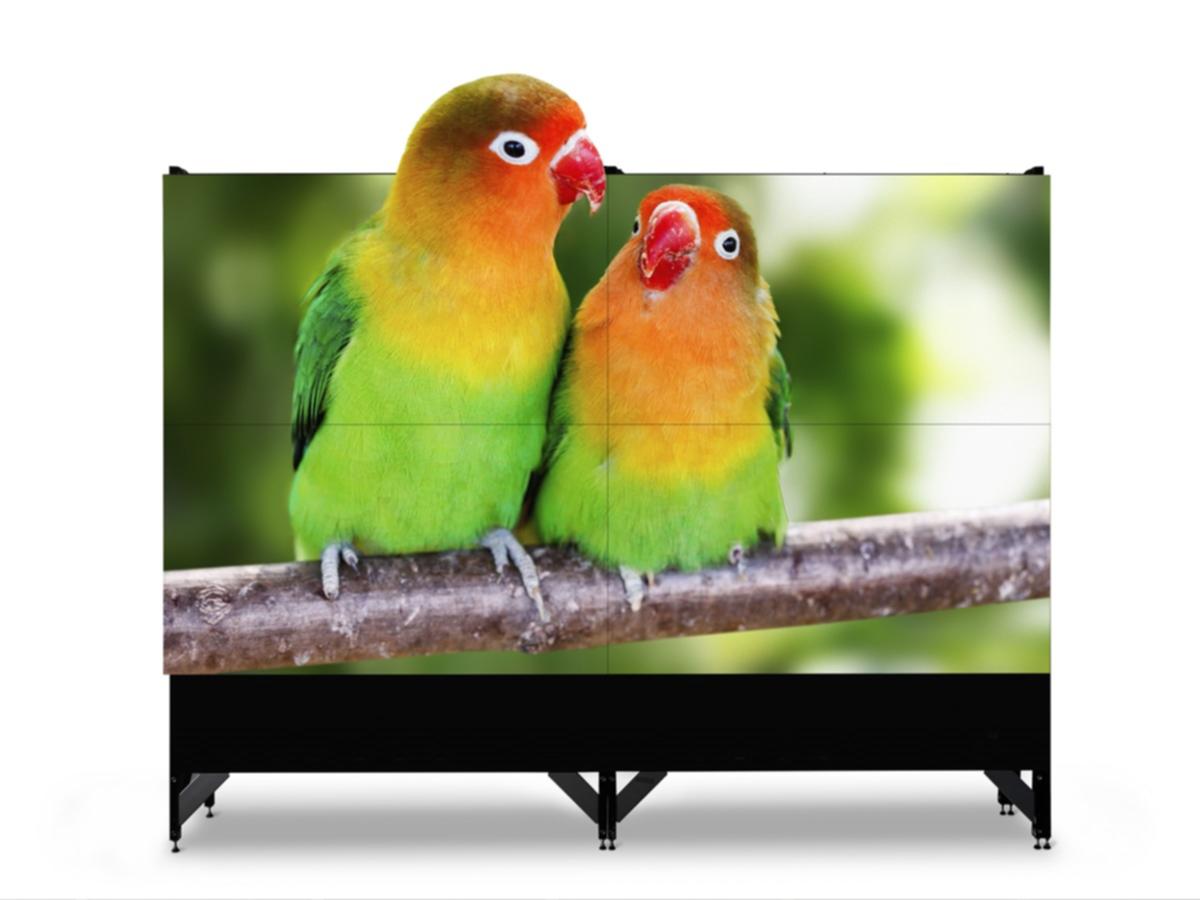

Laser-lit rear-projection video walls with front access and 3D

  • Showing stereoscopic images using active shutter glasses
  • 2x more brightness than mainstream LED-lit video walls
  • 25% less power consumption at higher brightness levels
  • Front access eliminates need for rear maintenance area
  • More than 11 years of uninterrupted operation in 24/7 mode
  • Unmatched colors, focus, and contrast levels
  • Silent like never before (‘library’ noise level)
  • Redundancy of critical components for ultimate peace of mind
  • 50% setup-time reduction (motorized 7-axis alignment)

Barco's RGB Laser ODLSF brings 3D to video walls. Powered with the latest RGB laser technology, these video walls deliver unseen brightness levels and vibrant colors, while offering a very low total cost of ownership (TCO). With its 10th generation of rear-projection video walls, Barco again raises the bar for critical infrastructure markets visualization. The RGB Laser ODLSF is therefore the first choice for video walls that require a guaranteed uptime and need to show stereoscopic images (using active shutter glasses).

Providing 2x more brightness than mainstream LED-lit rear-projection video walls, the RGB laser series take away all brightness issues of earlier video walls. Because the high luminance allows operating under daylight conditions, control rooms can finally light up - which improves operator working conditions! Adding vibrant colors to this mix, that make all nuances clearly distinguishable, you make sure nothing is wrongly interpreted and situational awareness is enhanced. Front access eliminates the need for a rear maintenance area, for control rooms where space is a critical issue.

Over 11 years of uninterrupted 24/7 operations

With the RGB laser for 24/7 control rooms series, Barco takes another giant leap forward in terms of reliability. With a lifetime of at least 100,000 hours in eco-mode, operators enjoy a staggering 11.5 years of uninterrupted 24/7 operations. Redundancy of all critical components (including power supply, inputs, and drivers) make sure nothing is left to chance when it comes to uptime. Unlike technology used by competitors and in non-24/7 meeting rooms, Barco's RGB laser display series doesn't need a rotating color wheel to operate. Since each color can be uniquely controlled and is not dependent on the segment of a color wheel, it provides color control like never before and eliminates color breakup.

Automatic calibration and alignment

The engine of Barco’s RGB laser for 24/7 control rooms is fully motorized. Installers and maintenance staff will never need to open up the individual modules to perfectly align the individual cubes of the video wall. Using a web interface, the video wall can be remotely aligned by a single technician - including keystone correction. This is far more efficient, more reliable, and less time consuming, saving up to 50% of alignment and adjustments efforts. Combined with the Sense X automatic calibration system, continuously measuring and adjusting brightness and color levels over the complete video wall, users are sure the complete canvas is perfectly balanced at any time.

Laser light sourceFull HD resolutionAspect ratio 16:9Easy installationEnvironment-friendly productLow noise operationRedundant LED design, redundant inputsCompact footprint, space-saving design3D stereoFront access option

Specifikációk

ResolutionFull HD (1920 x 1080 pixels)
Screen
Undernativecolorgamut

Screen typeCSI Light source lifetime (hrs)Power usage (W)
 2D3D
Boost650 cd/m²NA60,000260
Normal500 cd/m²420 cd/m²80,000200
Eco250 cd/m²210 cd/m²100,000120
Horizontal half gain viewing angle36° --
Vertical half gain viewing angle34° --
On-screen contrast1800:1
ColorUp to 170% REC709 color triangle
Display technologyRear projection DLP
White pointCustomized white points
Brightness uniformityTyp. >95% ANSI 9
Typ. >90% ANSI 13
Screen gapDependant on screen type
Color stabilitySense X automatic calibration
Dimensions• Diagonal: 70" (Approx.)
• Width: 1,550 mm | 61.02"
• Height: 872 mm | 34.33"
• Depth: 642 mm | 25.28"
• Weight: Projection Module: < 63 kg | 139 lbs
• Weight: Support frame: < 39 kg | 86 lbs
Light sourceRGB laser (Laser Class 2)
RedundancyRedundant laser banks with redundant power supply drivers, input signal & external power supply
Light source lifetime> 100,000hrs in eco mode
> 80,000hrs in normal mode
> 60,000hrs in boost mode
Noise LevelLess than 20 dB (measured from 3 meters in front)
Conditions for operation10°C-40°C | 50°F-104°F
Up to 80% humidity (non-condensing)
AC input voltage100 – 240 VAC, 50-60Hz
Power120W (eco)
200W (normal)
260W (boost)
Heat dissipation390 BTU/h (eco)
680 BTU/h (typ)
860 BTU/h (max)
SignalRedundant Dual link DVI (HDCP compliant)
Pixel clock330 MHz
Input frequency24 – 62 Hz & 92 -120 Hz
Genlock49 – 61 Hz & 92 -120 Hz
Minimum frame delay1 frame in minimum frame delay (always applicable for 3D stereo projection and for mono projection with no scaling/cropping)
< 2-3 frames in all other cases at full frame rate
Signal processingLoop through
Cropping and scaling with wall configuration (for mono projection only)
Direct ethernet accessBuilt in web server
Graphical user interfaceAll settings and operational parameters
Integration to third party equipmentWEB service API
Warranty2 years
