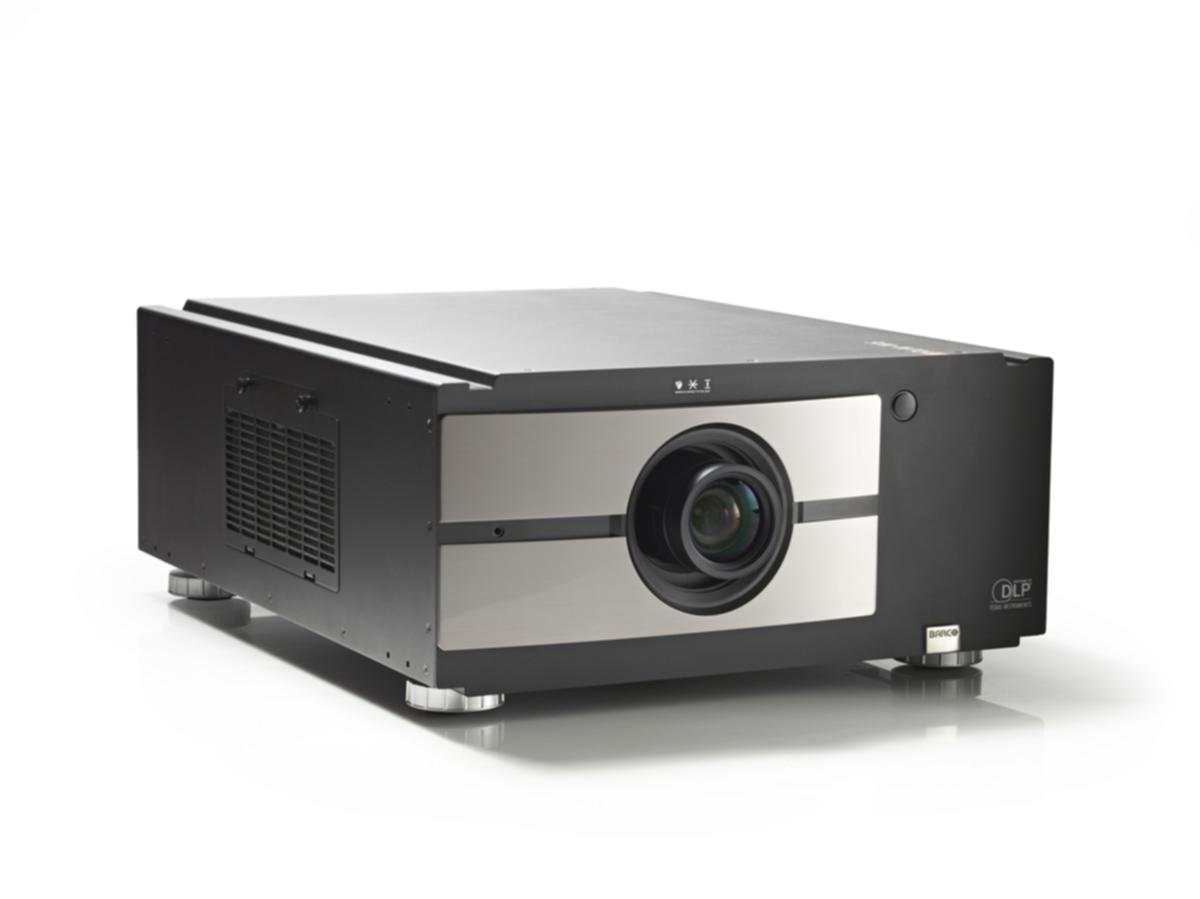

RLM-W8

8,000 lumens, WUXGA, 3-chip DLP projector
  • 3-chip DLP color quality
  • Blending and built-in warping
  • BarcoLink for fast signal distribution

Barco's RLM-W8 brings the saturated colors of 3-chip DLPTM projection to events and fixed installations, at the price of single-chip DLPTM technology.

Featuring blending and built-in warping

With an enhanced contrast, quick and creative stacking options as well as built-in warping capabilities for curved surfaces, Barco's RLM-W8 is a versatile choice for mid- to large-sized venues. In addition, it features blending technology to create seamless composite images across a canvas of any size. The RLM-W8 continues the RLM line's tradition of silence as well as low energy consumption.

Fast signal distribution

Our proprietary BarcoLink technology guarantees swift signal distribution between Barco’s projectors and image processors. With BarcoLink, signals are distributed over a BNC coax cable, which is not only more durable but also enables you to lower your costs.

Projector type 4K single-chip DLP laser phosphor projector
Technology 0.64" DMD
Resolution 3,840 x 2,400 (4K UHD) / 2,560 x 1,600 (WQXGA native)
Brightness 7,000 center lumen
Contrast ratio 1,200:1 sequential, 10,000:1 dynamic *
Brightness uniformity 95%
Aspect ratio 16:10
Lens type GLD / FLD+ (lens adapter needed)
Optical lens shift Up to 140% shift, depending on lens. Motorized zoom, focus, vertical and horizontal shift
Color correction P7 RealColor™
CLO (constant light output) Yes*
Light source Laser phosphor
Light source lifetime Up to 40,000 hours**
Sealed DLP™ core Yes
Orientation 360° rotation, no restrictions
3D Active stereoscopic 3D * / Passive stereo compatible
Image processing Embedded warp & blend engine
Keystone correction Yes
Inputs HDSDI, 2x DP 1.2, 2x dual link DVI-D, HDBaseT, HDMI 2.0*, RJ 45 Ethernet, DMX in/out*, RS232 in, 2x USB, 12V out
Input resolutions Up to 4K UHD @ 60Hz / Up to 2,560 x 1,600 @ 120Hz
Software tools Projector Toolset
Control IR, RS232, RJ45, XLR wired
Network connection 10/100 Ethernet, RJ45
Power requirements 100-240V / 50-60Hz
Power consumption 700 W nominal, 850 W maximum
BTU per hour 2,400 BTU/h nominal, 2,900 BTU/h maximum
Standby power <0.5W
Noise level (typical at 25°C/77°F) 35 dB(A)
Throw Ratio 0.85 - 1.06 ; 1.06 - 1.43 ; 1.43 - 2.12 ; 2.12 - 3.18
and compatible with FLD/FLD+ series (with adapter)
Operating temperature 10°C (50°F)- 40°C (104°F) (up to 1500m altitude) / 10° (50°F) - 35°C (95°F) (up to 3000m altitude)
Storage - transport temperature -20 to 60 °C
Operating humidity 20 - 80% RH (non-condensed)
Storage humidity 20 - 90% RH (non-condensed)
Dimensions (WxLxH) 480 x 680 x 227 mm / 18.9 x 26.7 x 8.9 in
Weight 25.5 kg / 56.2 lbs
Output Resolutions 2,560 x 1,600 (WQXGA) ; 3,840 x 2,400 (16:10) ; 3,840 x 2,160 (16:9) ; 4,096 x 2,160 (DCI)
Standard accessories Power cord, wireless remote control
Certifications CE, FCC Class A, cNemkoUS, CCC, EAC, KSA, RCM, UkrSEPRO
Warranty Limited 3 years parts and labor. Extendable up to 5 years
* SW upgradable. Please contact an authorized Barco representative for details.<\br> When used in long-life mode, available through SW upgrade.
