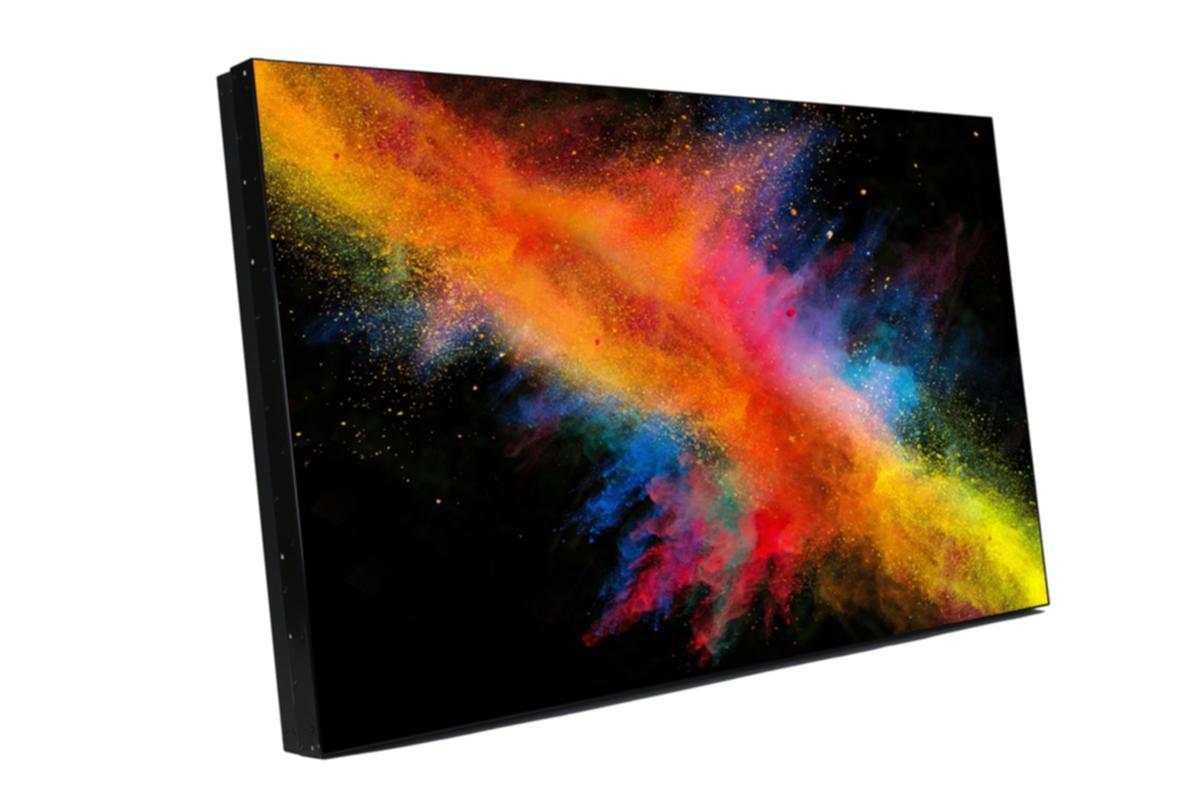

OverView KVD5521B

55" near-seamless LCD video wall for entry level and mid-end applications
  • Easy servicing and shorter interventions
  • Fan-less solution for noiseless applications
  • Best inter-tile color and brightness calibration
  • User-friendly video wall setup and control interface
  • Optional 5 year service packages
  • Suitable for 24/7 operations and mission critical applications
  • Clear and clean DOA procedure

Barco's OverView KVD5521B is a high-performance, mid-level brightness (500 cd/m² typical) and cost optimized 55" LCD-panel, dedicated for use in tiled video wall applications. With a bezel of 3.5 mm (0.14"), excellent colors and contrast, and a wide viewing angle, the OverView KVD5521B provides great value to entry level and mid-end applications.

Saving costs with automatic color and brightness calibration

The OverView KVD5521B is an improved and optimized version of the successful KVD5521, and builds on the excellent reputation of Barco’s LCD video wall portfolio. The signature innovative Sense X - Barco’s automatic real-time color and brightness calibration system - ensures that the complete wall produces a perfectly balanced image at all times. The absence of cooling fans not only minimizes the noise production, but also ensures that no moving parts – which are susceptible to wear and have a limited lifetime – are used. Plus, the introduction of DisplayPort V1.2, enabling to feed 4 displays in loop-through with 4K@60Hz content, is very important for easy connection with a limited number of cables.

A modular approach for enhanced uptime

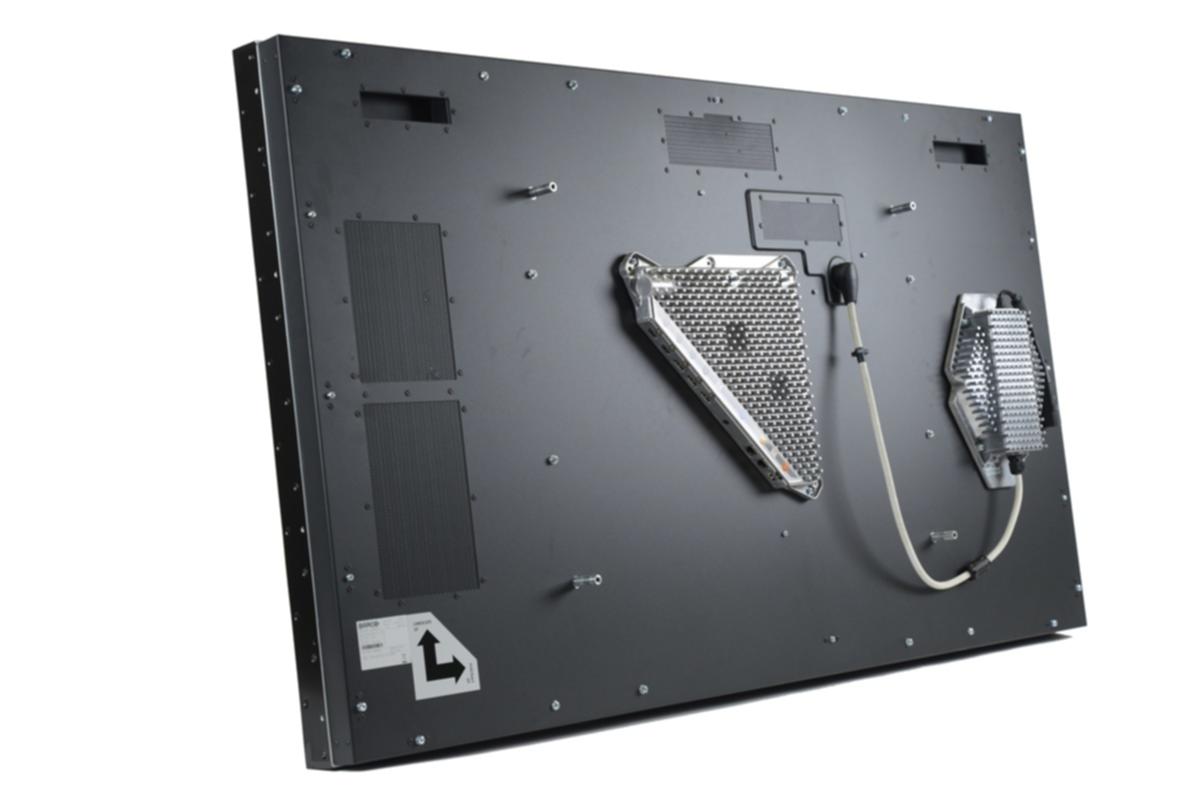

In order to guarantee an optimal uptime, the KVD5521B platform has a number of features to both prevent downtime and to speed up servicing. The input boards and power supplies can be quickly removed from the display, so they can be easily maintained or replaced. The use of LCD Connect makes it much easier to control the video wall, further improving the user-friendliness.

Click for more information

Specifikációk

Power
Connectivity
Dimensions
Panel
LCD technology IPS
Resolution Full HD (1920 x 1080)
Backlight Direct LED
Aspect ratio 16:9
Luminance 500 cd/m2 (typ.)
Contrast 1400:1 (typ.)
White point native 10,000 K (typ.)
Calibration Sense X automatic color and brightness calibration
Precision 10 bit processing
Backlight lifetime 60,000 h (typ)
Cooling Fanless
Screen haze 10%
Operating temperature 0-40°C
Operational humidity 20-80% non-condensing
Dimensions 1213.4 x 684.2 x 69 mm | 47.77" x 26.94" 2.73" (without SMPS)
1213.4 x 684.2 x 100 mm | 47.77" x 26.94" 3.94" (without SMPS, considering M6 mounting standoff)
1213.4 x 684.2 x 121 mm | 47.77" x 26.94" 4.77" (with SMPS)
Active screen diagonal 55" (1397 mm)
Active screen area 1209.6 mm x 680.4 mm | 47.62" x 26.79"
Weight 28 kg | 61.7 lbs (LCD net) / 30.5 kg | 67.2 lbs (LCD gross, including package)
Total bezel width (two adjacent displays) 3.5 mm | 0.14" (2.3mm + 1.2mm | 0.09" + 0.05")
(Active-to-active width: 3.8 mm | 0.15")
DisplayPort 2 DP1.2 inputs (DisplayPort 1.2 cables must be used when the cable length exceeds 3m / 10 feet)
1 output
Ethernet port 2
HDCP Yes
HDMI 2 inputs
USB 2 input (only for power)
AC input voltage 100-240 VAC, 50-60 Hz
Power consumption
 Integrated power supplyExternal power supply
500 nit native190 W157 W
350 nit native126 W92 W
Heat dissipation
 Integrated power supplyExternal power supply
500 nit native580 BTU/h536 BTU/h
350 nit native342 BTU/h314 BTU/h
